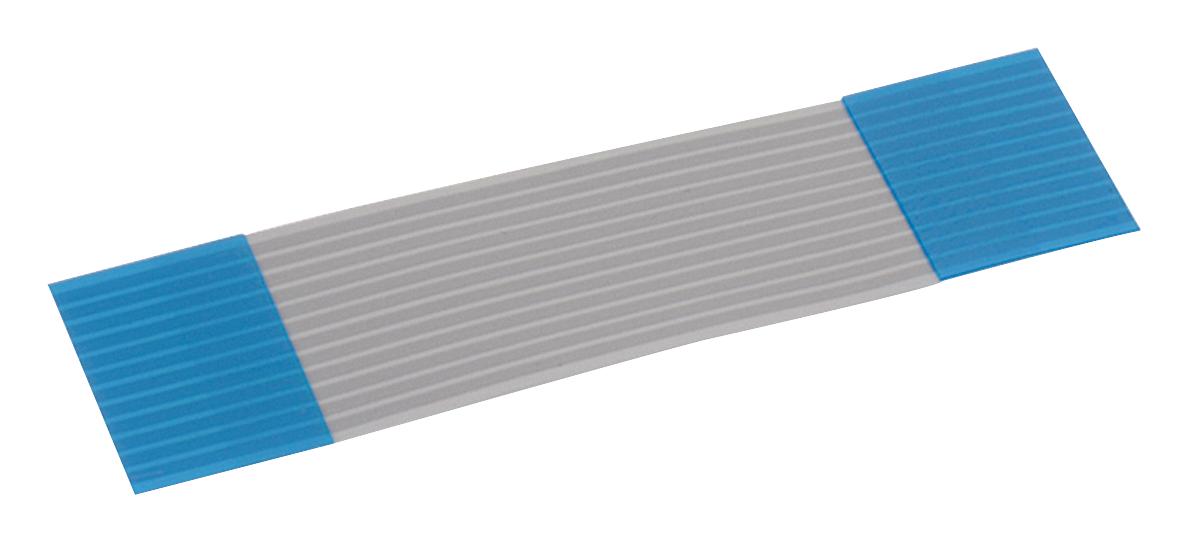

WURTH ELEKTRONIK 686609152001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a high-quality, 1.00 mm Type 1 cable designed for electronic equipment connections. Made with PET insulator and copper conductors, it offers excellent durability, flexibility, and resistance to temperature (-30°C to +105°C). The cable features tin-plated connectors with a rated current of 1A and working voltage of 60V, suitable for data and signal transfer in electronic devices. Its compact design and reliable properties make it ideal for modern electronic systems requiring flexible, space-saving connections.
WURTH ELEKTRONIK 686609152001 Flat Flexible Cable Specifications:
- Conductor Material: Copper
- Insulator Material: PET (White)
- Tape Material: PET (Blue)
- Operating Temperature: -30°C to +105°C
- Rated Current: 1A
- Working Voltage: 60V
- Insulation Resistance: 500V (DC) 1000MΩ min.
- Withstanding Voltage: 500V AC, 1 min without breakdown
- Conductor Resistance: 1.09 Ω max.
- Contact Resistance: 20 mΩ max.
- Flammability Rating: UL Sub.758
- Physical Dimensions: Length 10 mm, Width 1.00 mm, Thickness 0.225 mm
- Durability: 20 mating cycles
- Certification: UL, RoHS, REACH compliant
- Packaging: Bag
- Moisture Resistance: 40°C, 95% RH for 96 hours
Buy the Wurth Elektronik Series WR-FFC Flat Flexible Cable: 686609152001
Enhance your electronic designs with the durable and flexible Flat Flexible Cable from Wurth Elektronik. Made with high-quality PET insulators and copper conductors, this 1.00 mm cable offers excellent conductivity, temperature resistance from -30°C to +105°C, and reliable performance for data and signal transfer. Its compact, space-efficient design is ideal for modern electronic systems, providing up to 20 mating cycles, UL and RoHS compliance, and robust construction. Purchase online today to guarantee dependable connections in your electronic assemblies and ensure optimal device performance.
Order your Wurth Elektronik Series WR-FFC Flat Flexible Cable today and ensure reliable, space-saving connections in your electronic projects.
