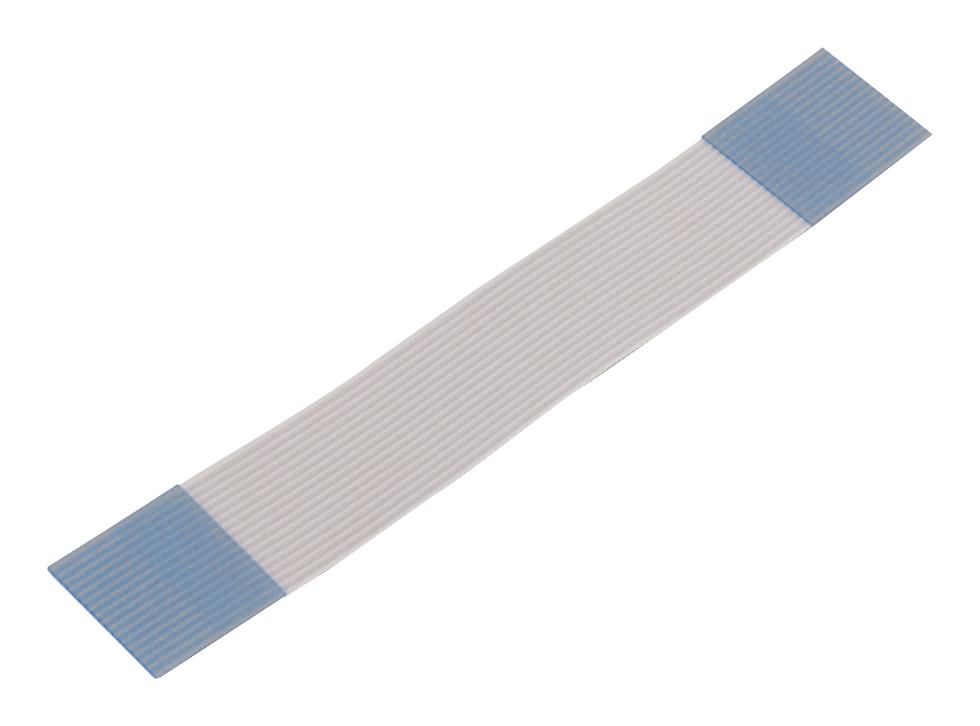

WURTH ELEKTRONIK 686615050001 Flexible Ribbon Cable
The WR-FFC Flat Flexible Cable with Part Number 686615050001 is a high-quality, 1.00 mm type cable designed for electronic equipment connections. It features durability for up to 20 mating cycles and is compliant with Rots approval standards. Constructed with PET insulator and tape materials, it offers excellent resistance to heat, moisture, and flame according to UL standards. Operating within -30°C to +105°C, it provides rated currents of 1A and a working voltage of 60V, ensuring reliable signal transmission with minimal conductor resistance of 1.09 ohms. Its flexible design accommodates intricate circuit layouts, making it ideal for electronic device manufacturing, testing, and connections requiring high reliability and compliance.
WURTH ELEKTRONIK 686615050001 Flexible Ribbon Cable Specifications:
- Conductor Material: Copper with Tin Plating
- Insulation Material: PET (White)
- Tape Material: PET (Blue)
- Operating Temperature: -30°C to +105°C
- Heat Resistance: 110°C for 96 hours
- Flammability Rating: UL SUB.758
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Rated Current: 1A maximum
- Working Voltage: 60V
- Insulation Resistance: 500V (DC), minimum 1000 megaohms
- Withstanding Voltage: 500V AC for 1 minute with no breakdown
- Conductor Resistance: Max 1.09 ohms
- Mechanical Durability: 20 mating cycles, elongation at least 60%, tensile strength minimum 35 N/mm², flexing 180° for 20 times, abrasion tested for 10,000 cycles
- Certification: UL, RoHS, REACH compliant
- Packaging: Bag, storage according to DIN EN 61760-2
Buy the Buy Wurth Elektronik Flat Flexible Cable Part Number 686615050001 Online
Purchase the Wurth Elektronik Flat Flexible Cable Part Number 686615050001 online today to ensure high-quality, reliable connections in your electronic projects. This durable, UL and RoHS compliant cable with a 1.00 mm pitch offers excellent heat and moisture resistance, supporting applications from -30°C to +105°C. Its flexible design allows for easy installation even in tight spaces, making it ideal for electronic equipment manufacturing, testing, and circuit connections. Ensure optimal performance with this dependable cable, available for quick and secure online ordering.
Buy Wurth Elektronik Part Number 686615050001 now and experience unmatched flexibility and reliable signal transmission in your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686615050001?
You can click on the BUY or RFQ button to purchase 686615050001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686615050001?
You can download the 686615050001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686615050001?
WURTH ELEKTRONIK
