WURTH ELEKTRONIK 686615100001 Flat Flexible Cable
This flat flexible cable by Wurth Elektronik features a 1.00 mm pitch, total length of 100 mm, and a durable PET insulator. Designed for electronic applications, it offers reliable current handling of up to 1A, working voltage of 60V, and high flexibility with a bend resistance of 180° over 20 cycles. Its copper contacts are tin-plated, ensuring excellent electrical conductivity and corrosion resistance. The cable's mechanical resilience makes it suitable for compact, high-density electronic assemblies, providing consistent electrical performance and easy integration in automation, consumer electronics, and industrial equipment.
WURTH ELEKTRONIK 686615100001 Flat Flexible Cable Specifications:
- Pitch: 1.00 mm with ±0.08 mm tolerance
- Total length: 100 mm with ±3 mm tolerance
- Width: 16 mm with ±0.1 mm tolerance
- Conductor width: 7 mm with ±0.08 mm tolerance
- Conductor thickness: 0.035 mm with ±0.01 mm tolerance
- Insulation thickness: 0.043 mm with ±0.01 mm tolerance
- Support tape length: 10 mm, thickness 0.225 mm ±0.01 mm
- Operating temperature: -30°C to +105°C
- Rated current: 1 A
- Working voltage: 60 V
- Insulation resistance: 500 V (DC) minimum 1000 MΩ
- Contact resistance: 20 mΩ maximum
- Material: PET insulator, copper contacts tin-plated
- Durability: 20 mating cycles, conforms to Rots approval (2011/65/EU & 2015/863), RoHS, REACH compliant
- Flexing: 180° bend over 20 cycles, abrasion resistant up to 10,000 cycles

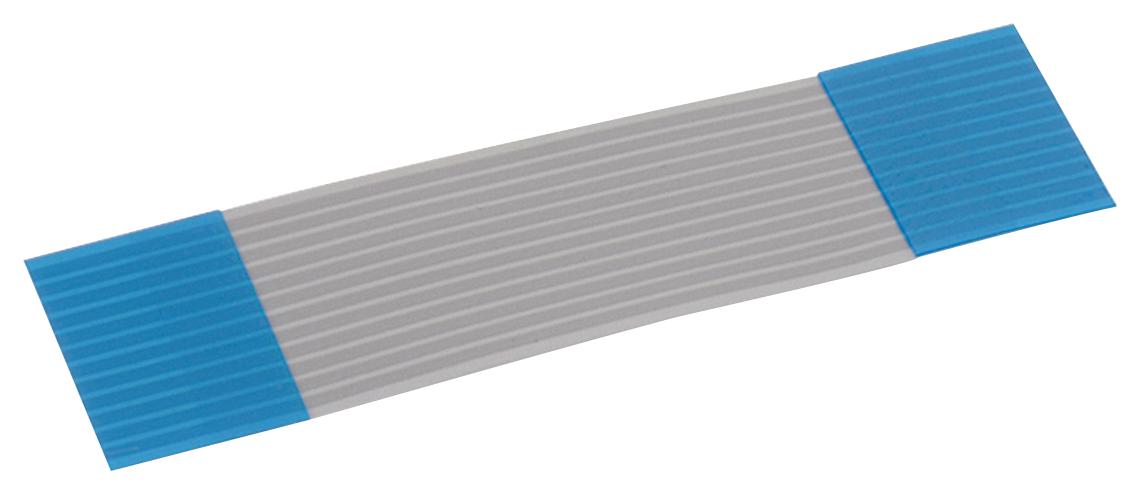

Buy the Buy Wurth Elektronik Flat Flexible Cable Part Number 686615100001 Online
Enhance your electronic assemblies with our high-quality flat flexible cable featuring a 1.00 mm pitch, 100 mm length, and copper contacts. Designed for reliable performance, it handles up to 1A current and operates at 60V with a temperature range from -30°C to +105°C. Its durable PET insulator and tin-plated contacts ensure corrosion resistance and long-term stability. Perfect for automation, consumer electronics, and industrial applications, this flexible cable provides superior electrical conductivity, mechanical resilience, and ease of installation, ensuring your projects perform flawlessly and efficiently.
Order your Wurth Elektronik Flat Flexible Cable 686615100001 today and ensure reliable connections for your electronic projects with high flexibility and durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686615100001?
You can click on the BUY or RFQ button to purchase 686615100001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686615100001?
You can download the 686615100001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686615100001?
WURTH ELEKTRONIK
