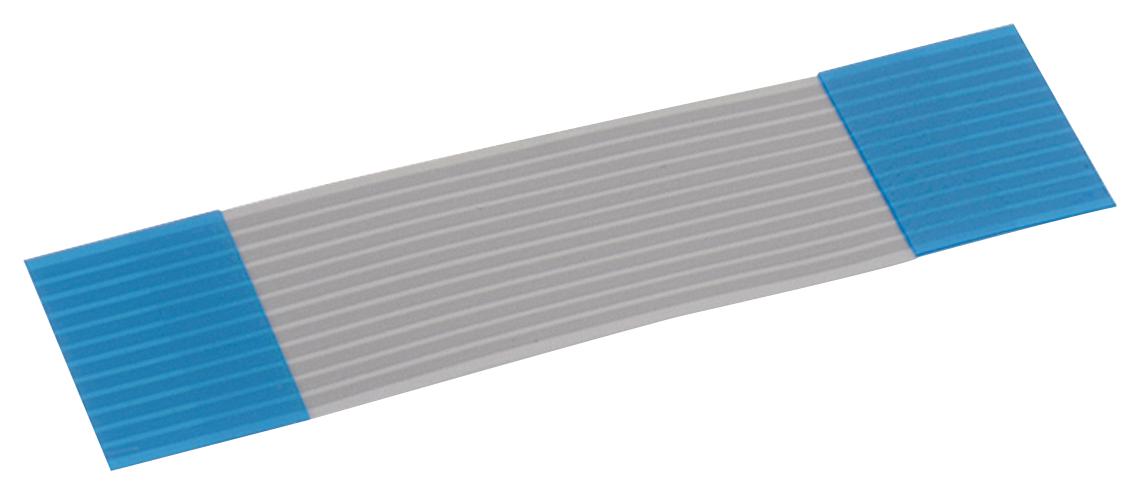

WURTH ELEKTRONIK 686616100001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable with a 1.00 mm pitch is designed for high-reliability electronic connections. Made from durable PET insulator with tin-plated copper conductors, it features a working voltage of 60V and a maximum rated current of 1A. Its high flexibility and elongation of 60% allow for optimal routing in compact electronic assemblies. Approved for durability with 20 mating cycles and compliant with Rots, REACH, and UL standards, this cable ensures stable electrical performance in various industrial and commercial applications. Ideal for connecting electronic modules where space and flexibility are critical.
WURTH ELEKTRONIK 686616100001 Flat Flexible Cable Specifications:
- Pitch: 1.00 mm ±0.08 mm
- Total Length: 15 mm ±0.1 mm
- Length: 100 mm ±23 mm
- Width: 17 mm ±0.1 mm
- Margin: 1 mm ±0.12 mm
- Conductor Width: 0.7 mm ±0.03 mm
- Conductor Thickness: 0.085 mm ±0.01 mm
- Support Tape Length 1 & 2: 10 mm ±2 mm
- Support Tape Length 1 & 2: 5 mm ±1 mm
- Support Tape Thickness: 0.225 mm ±0.01 mm
- Insulation Thickness: 0.043 mm (±0.0 mm)
- Rated Current: 1 A (max)
- Working Voltage: 60 V
- Insulation Resistance: 500 V (DC) 1000 MΩ (min)
- Withstanding Voltage: 500 V AC for 1 min (no breakdown)
- Conductor Resistance: 1.09 mΩ (max)
- Contact Resistance: 20 mΩ (max)
- Elongation of Insulator: 60% (min)
- Tensile Strength: 35 N/mm² (min)
- Flexing Test: 180° bend 20 times (min)
- Abrasion Resistance: 10,000 cycles (min)
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Material: PET insulator, copper with tin plating
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 686616100001 Online
Order the durable and high-performance flat flexible cable from WURTH ELEKTRONIK online today. Designed for reliable electronic connections, this 1.00 mm pitch cable features tin-plated copper conductors, excellent flexibility, and compliance with UL, REACH, and RoHS standards. Perfect for space-constrained applications, it ensures lasting electrical stability with high durability, rated for 20 mating cycles. Whether for industrial or commercial electronics, buy online now for quick delivery and excellent technical support to meet your project needs.
Buy WURTH ELEKTRONIK 686616100001 now and experience unmatched reliability and performance in electronic connectivity with our high-quality flexible cables.
