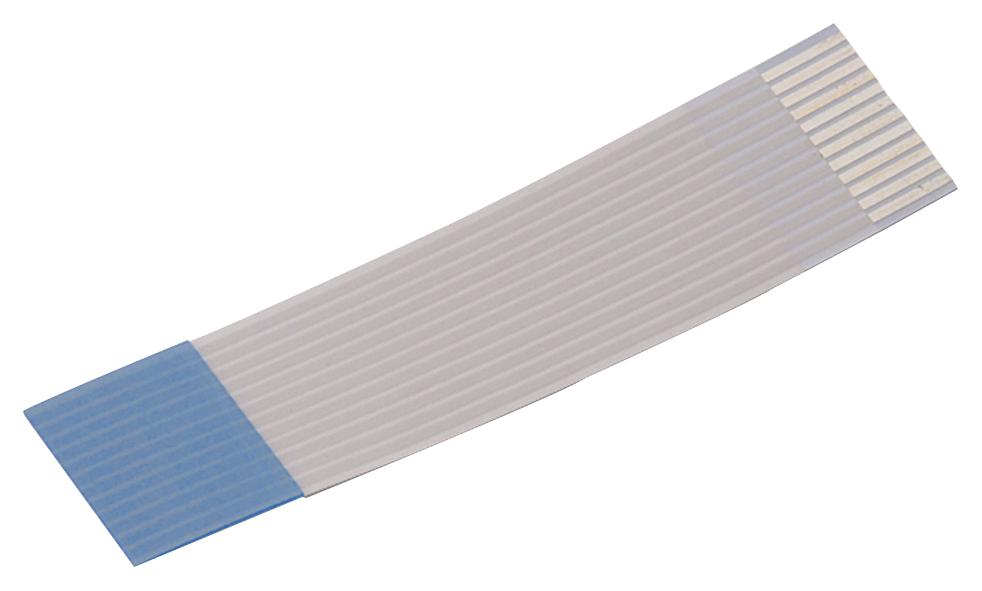

WURTH ELEKTRONIK 686704152001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable by Wurth Elektronik is a high-quality Type 2, 1.00 mm pitch double-conductor cable designed for flexible electronic connections. It features durable PET insulation and copper conductors with tin plating, ensuring reliable electrical performance and durability in various electronic devices. The cable supports a maximum operating temperature of +105°C, with excellent resistance to moisture and flames. Ideal for compact, lightweight applications requiring flexible, space-efficient wiring solutions with rated currents up to 1 A and working voltages of 60 V.
WURTH ELEKTRONIK 686704152001 Flat Flexible Cable Specifications:
- Type: Flat Flexible Cable
- Pitch: 1.00 mm
- Conductor Material: Copper, Tin plated
- Insulator Material: PET (White)
- Tape Material: PET (Blue)
- Operating Temperature: -30°C to +105°C
- Maximum Operating Voltage: 60 V
- Rated Current: 1 A
- Insulation Resistance: 1000 MΩ at 500 V
- Withstanding Voltage: 500 V for 1 min without breakdown
- Conductor Resistance: 1.09 mΩ max.
- Contact Resistance: 20 mΩ max.
- Durability: 20 mating cycles
- Flammability Rating: UL SUB.758
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
Buy the Buy Wurth Elektronik Flat Flexible Cable Part Number 686704152001 Online
Purchase the Wurth Elektronik Flat Flexible Cable online today and enjoy high-quality, space-saving wiring solutions suited for a wide range of electronic applications. This durable, flexible cable features 1.00 mm pitch, copper conductors with tin plating, and PET insulation for excellent electrical performance and reliability. Its high temperature tolerance, rated for -30°C to +105°C, and maximum working voltage of 60 V make it ideal for compact circuits, automation, and industrial equipment. Secure your supply now for efficient, lightweight, and dependable connections.
Order your Wurth Elektronik Type 2 Flat Flexible Cable 686704152001 today and ensure reliable, flexible electronic connections for your advanced projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686704152001?
You can click on the BUY or RFQ button to purchase 686704152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686704152001?
You can download the 686704152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686704152001?
WURTH ELEKTRONIK
