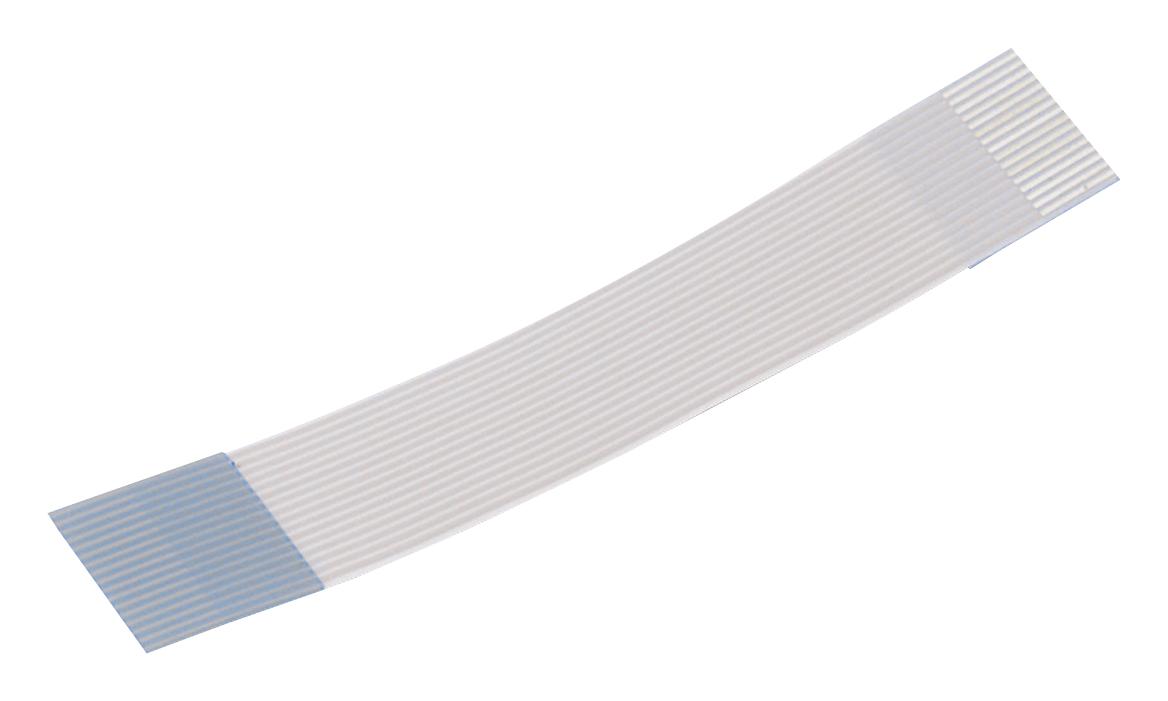

WURTH ELEKTRONIK 686704200001 Flat Flexible Cable
WURTH ELEKTRONIK's WR-FFC Flat Flexible Cable is a high-quality Type 2, 1.00 mm pitch flexible connector designed for versatile electronic applications. This durable cable features a white PET insulator, blue PET support tape, and copper contacts with tin plating, ensuring reliable electrical performance. Operating within -30°C to +105°C, it offers excellent temperature resistance, moisture resistance, and compliance with UL and RoHS standards. Suitable for electronics requiring flexible, space-efficient connections, this cable is ideal for sophisticated assembly and testing environments. Carefully designed for safety, durability, and efficient performance in modern electronic systems.
WURTH ELEKTRONIK 686704200001 Flat Flexible Cable Specifications:
- Insulator Material: PET (White)
- Support Tape Material: PET (Blue)
- Contact Material: Copper with Tin plating
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 MΩ min. at 500 V (DC)
- Withstanding Voltage: 500 V AC for 1 minute
- Conductor Resistance: 1.09 Ω max.
- Operating Temperature: -30°C to +105°C
- Heat Resistance: 110°C for 96 hours
- Flammability Rating: UL SUB.758
- Moisture Resistance: 95% RH at 40°C for 96 hours
- Durability: 20 mating cycles
- Certifications: UL, RoHS, REACh compliant
- Packaging: Bulk and carton, specific to order quantities
Buy the Wurth Series WR-FFC Flat Flexible Cable: 686704200001
Purchase the Wurth WR-FFC Flat Flexible Cable online today and ensure your electronic assemblies feature flexible, space-efficient connectors. Designed with PET insulation and copper contacts, this cable provides excellent temperature resistance from -30°C to +105°C, moisture resistance, and compliance with UL and RoHS standards. Its durable construction supports up to 20 mating cycles, making it ideal for advanced electronic devices and testing environments. Experience seamless installation, reliable performance, and fast delivery when you buy online from authorized suppliers.
Buy Wurth WR-FFC Flat Flexible Cable now and experience reliable, space-saving electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686704200001?
You can click on the BUY or RFQ button to purchase 686704200001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686704200001?
You can download the 686704200001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686704200001?
WURTH ELEKTRONIK
