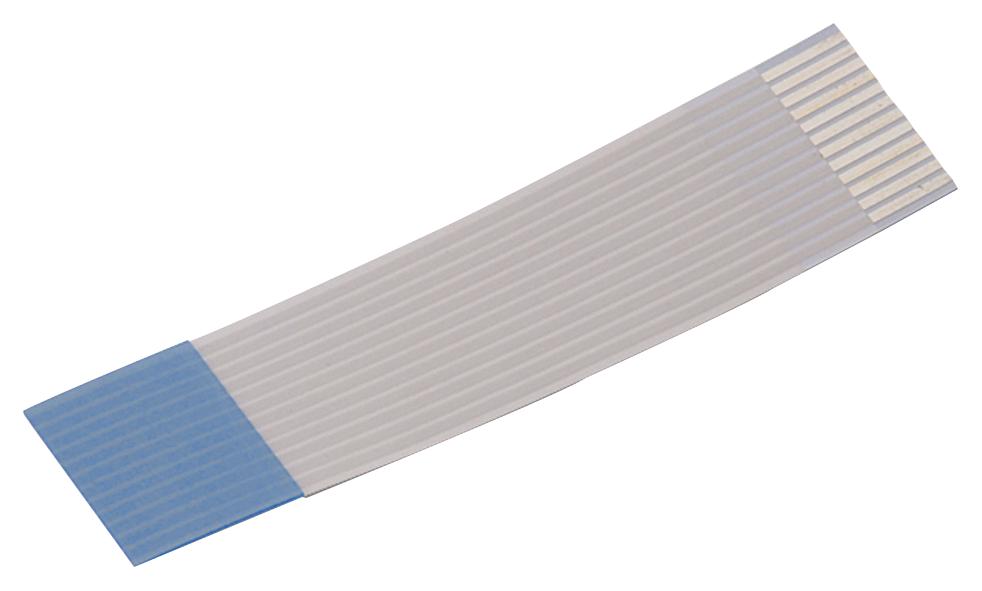

WURTH ELEKTRONIK 686726100001 Flexible Cable
WURTH ELEKTRONIK Flat Flexible Cable Type 2, 1.00 mm, designed for electronic applications requiring reliable flexible connections. Made with high-quality materials, it features a PET insulator and copper conductors with tin plating, ensuring durability and optimal electrical performance. The cable withstands temperatures from -30°C to +105°C and complies with safety standards such as UL and REACH. Its flexible design enables easy routing in complex layouts, making it ideal for electronic manufacturing, testing, and device assembly where space-saving and reliability are essential.
WURTH ELEKTRONIK 686726100001 Flexible Cable Specifications:
- Insulator Material: PET (White)
- Tape Material: PET (Blue)
- Operating Temperature: -30°C to +105°C
- Heat Resistance: 110°C for 96 hours
- Fire Rating: UL SUB.758
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (DC) min. 1000 MΩ
- Withstanding Voltage: 500 V AC for 1 min without breakdown
- Conductor Resistance: 1.09 Ω max.
- Contact Resistance: 20 mΩ max.
- Durability: 20 mating cycles
- Certification: UL, CE, REACH compliant
- Material Certification: cULus (No. 328849)
Buy the WURTH ELEKTRONIK 686726100001 – Reliable Flexible Cable for Industrial Applications
Purchase the WURTH ELEKTRONIK Flexible Cable online today and ensure reliable, space-saving connections for your electronic projects. Made from high-quality PET and copper, it offers excellent temperature resistance, durability, and safety compliance suitable for industrial and manufacturing needs. Its flexible design allows for easy routing in tight spaces, supporting high-performance electronic devices. With UL, CE, and REACH certifications, you can trust this cable for professional electronic assemblies requiring high reliability and safety standards. Order now for fast delivery and superior quality.
Get WURTH ELEKTRONIK 686726100001 today—built for precision and long-lasting durability in electronic manufacturing.
