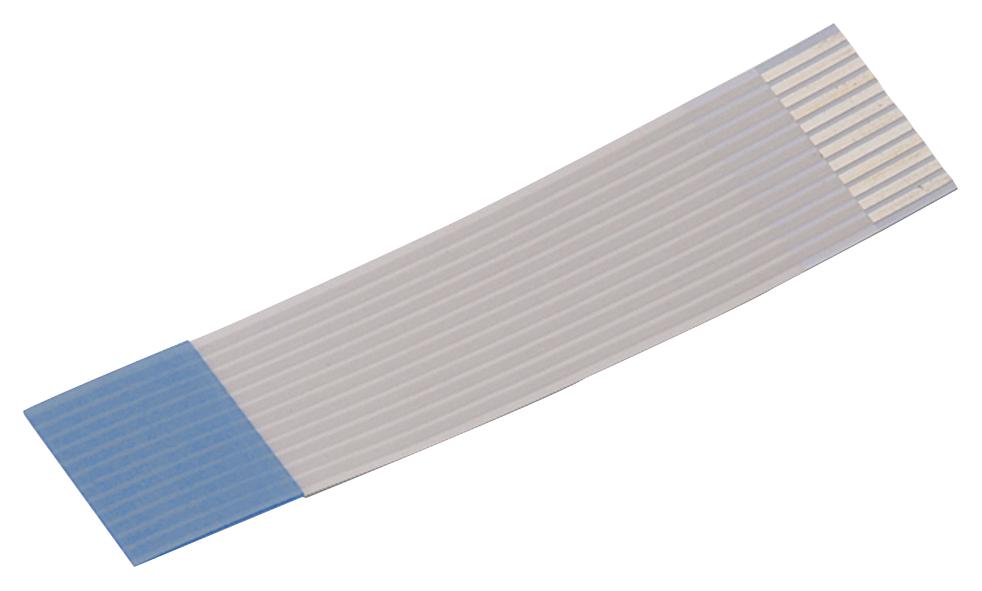

WURTH ELEKTRONIK 686730152001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable Type 2, with a 1.00 mm pitch, is designed for flexible electronic connections in various electronic devices. Made with high-quality PET insulator and copper conductors, it offers durability, excellent electrical performance, and compliance with safety standards. Suitable for lightweight, space-constrained applications, this cable supports a maximum rated current of 1 A and a working voltage of 60 V. Its flexible design ensures reliable, long-term connections in consumer electronics, industrial equipment, and communication devices, ensuring high reliability and easy installation.
WURTH ELEKTRONIK 686730152001 Flexible Flat Cable Specifications:
- Pitch: 1.00 mm
- Conductor Material: Copper
- Insulation Material: PET (White)
- Conductor Thickness: 0.035 mm
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 1000 mo. min at 500 V
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB.758
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Contact Resistance: Max. 20 mΩ
- Tensile Strength: Min. 35 N/mm²
- Elongation: Min. 60%
- Flexing Test: 180°, 20 times
- Abrasion Resistance: 10,000 Cycles
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Type 2 Part Number 686730152001 Online
Enhance your electronic designs with WURTH ELEKTRONIK's flexible flat cable, offering high durability, low electrical resistance, and easy installation. Perfect for space-constrained and high-reliability applications across industrial, consumer, and communication electronics. With a 1 mm pitch, copper conductors, PET insulation, rated for 1 A and 60 V, this cable ensures consistent electrical performance and long-term reliability. Trusted worldwide, order now to secure superior quality for your electronic assemblies and ensure seamless connections in your projects.
Order your WURTH ELEKTRONIK Flat Flexible Cable Type 2 1.00 mm today and ensure reliable, space-efficient connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686730152001?
You can click on the BUY or RFQ button to purchase 686730152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686730152001?
You can download the 686730152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686730152001?
WURTH ELEKTRONIK
