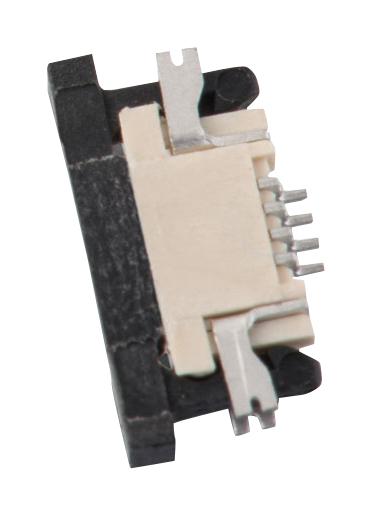

WURTH ELEKTRONIK 687110183722 FFC Connector
The WR-FPC SMT ZIF Horizontal Low Profile connector is a highly reliable and space-efficient electronic component designed for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Featuring a low-profile, horizontal ZIF (Zero Insertion Force) contact mechanism, it ensures easy assembly and secure connections in compact devices. Suitable for precise signal transmission, this connector is equipped with 10 pins, a pin-to-pin distance of 0.50 mm, and robust materials that meet international safety standards like UL94V-0. Ideal for electronics requiring high reliability and minimal space, it is used extensively in consumer devices, medical equipment, and industrial systems, ensuring durability and ease of use.
WURTH ELEKTRONIK 687110183722 FFC Connector Specifications:
- Pins: 10
- Pin to Pin (Middle): 0.50 mm
- Length L: 10.7 mm
- Width: 5.6 mm
- Material: Phosphor Bronze (contacts), Brass (solder tabs), UcP (insulator)
- Contact Plating: 120 (u”) Tin over 30 (u”) Nickel
- Operating Temperature: -25°C to +85°C
- Rated Current: 0.4 A
- Working Voltage: 50 V
- Insulation Resistance: 100 MΩ min.
- Contact Resistance: 30 mΩ max.
- UL Approval: E323964
- Certification: RoHS compliant, Halogen Free (IEC 61249-2-21), Reached approval
- Packaging: Tape and Reel
- Solder Tabs: Brass
- Profile: Horizontal Low Profile SMT ZIF
Buy the Buy Wurth Elektronik FFC FPC Connector Part Number 687110183722 Online
Purchase the Wurth Elektronik FFC FPC Connector Part Number 687110183722 online today and benefit from high-quality, space-efficient connection solutions. Designed for flexible flat cables and printed circuits, this low-profile horizontally actuated ZIF connector offers easy assembly, reliable signal transmission, and durable materials meeting international safety standards. Perfect for consumer electronics, industrial equipment, and medical devices, it guarantees secure connections in tight spaces. Order now to enhance your electronic designs with trusted, safe, and efficient connectivity components.
Order your Wurth Elektronik FFC FPC Connector Part Number 687110183722 today and ensure reliable, space-saving connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687110183722?
You can click on the BUY or RFQ button to purchase 687110183722 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687110183722?
You can download the 687110183722 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687110183722?
WURTH ELEKTRONIK
