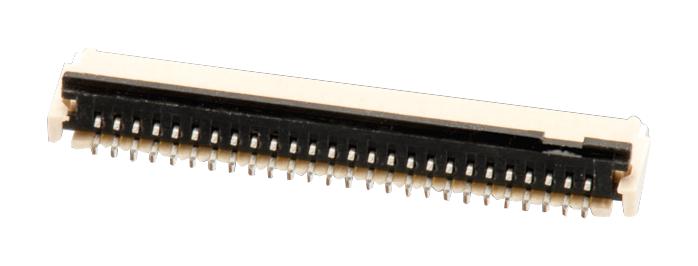

WURTH ELEKTRONIK 687122182122 FPC Connector
The Würth Elektronik WR-FPC SMT ZIF Horizontal Back connector (part number 687122182122) is a precision-engineered component designed for reliable and efficient connections in a variety of electronic applications. Its ZIF design allows for easy insertion and removal of flexible printed circuits (FPCs) without the need for specialized tools, minimizing the risk of damage. The connector's horizontal back configuration is ideal for compact designs, while the SMT capability streamlines manufacturing processes. It is RoHS compliant and packaged in tape and reel for automated assembly, making it a versatile and cost-effective solution for a wide range of electronic devices.
WURTH ELEKTRONIK 687122182122 FPC Connector Specifications:
- Pins: 22
- Pin to Pin (Middle): 10.5 mm
- Length L1: 12.42 mm
- Length L2: 11.55 mm
- Pitch: 0.5 mm
- Durability: 20 Mating cycles
- Insulator Material: LCP
- Insulator Flammability Rating: UL94 V-0
- Contact Material: Phosphor Bronze
- Contact Plating: 80 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [JEDEC JS709B]
- UL Approval: E323964
- Packaging: Tape and Reel
- Packaging Unit: 3500
- Operating Temperature: -55 up to +85 °C
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage: 250 V (AC) 1 min
- Contact Resistance: 30 mΩ max.
- Insulation Resistance: 500 MΩ min.
