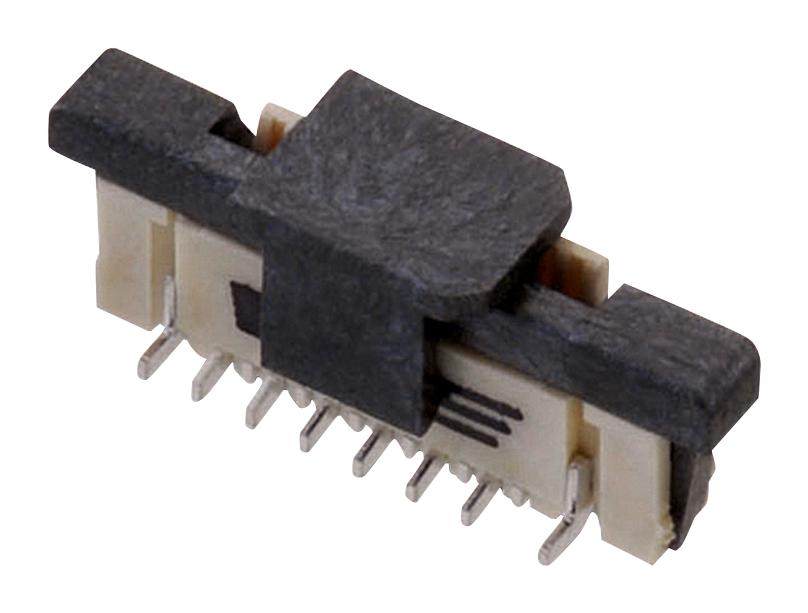

WURTH ELEKTRONIK 687326124422 FPC Connector ZIF Vertical
The Würth Elektronik 687326124422 is a ZIF vertical connector specifically engineered for flexible printed circuits. Its ZIF design allows for easy and reliable connection without requiring manual insertion force, minimizing stress on the FPC. Constructed with phosphor bronze contacts and tin plating, it ensures excellent conductivity and corrosion resistance. The LCP insulator provides robust electrical insulation and dimensional stability. This connector is ideal for a wide range of applications in general electronic equipment, offering a secure and convenient connection solution. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 687326124422 FPC Connector ZIF Vertical Specifications:
- Dimensions: 0.2 ±0.05 mm
- Article Properties: 0.5, 1.3 ±0.15 mm
- Recommended Land Pattern: 0.5, 1.5, 1 mm
- Pattern Properties: General tolerance ±0.05 mm
- Pin to Pin (Middle): 12.5 mm
- Length: 19.4 mm
- Length (L1): 13.6 mm
- Pitch (P): 0.5 mm
- Durability: 25 Mating cycles
- Insulator Material: LCP
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Ivory
- Actuator Material: PA9T
- Actuator Flammability Rating: UL94 V-0
- Actuator Color: Black
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- Solder Tabs: Brass
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E323964
- Packaging: Tape and Reel with Cap
- Packaging Unit (Qty): 1000
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage: 250 V (AC) for 1 min
- Contact Resistance: 20 mΩ (max.)
- Insulation Resistance: 100 MΩ (min.)
- Operating Temperature: -25 up to +85 °C
