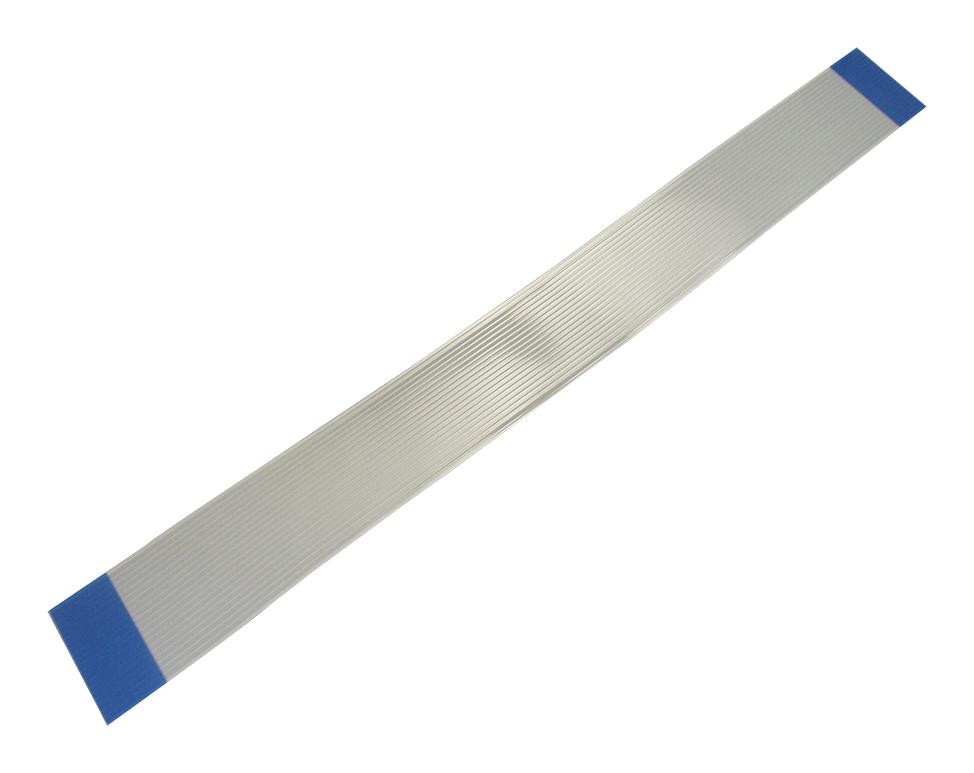

WURTH ELEKTRONIK 687618200002 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a 0.50 mm type cable designed for versatile electronic connections and flexible routing. It features durable insulation with PET materials, high temperature resistance up to 105°C, and conforms to UL and RoHS standards. Suitable for electronic equipment requiring reliable connectivity, it offers excellent electrical properties, including rated current of 0.5 A and working voltage of 60 V. The cable is packaged in bulk and cartons, ensuring safe storage and transport for manufacturing and repair applications.
WURTH ELEKTRONIK 687618200002 Flat Flexible Cable Specifications:
- Conductor Material: Copper
- Insulation Material: PET (White)
- Tape Material: PET (Blue)
- Operating Temperature: -30°C to +105°C
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (00): 1000 MΩ min
- Withstanding Voltage: 500 V (AG): No Breakdown
- Conductor Resistance: 14 mΩ max
- Contact Resistance: 20 mΩ max
- Flammability Rating: UL SUB.758
- Durability: 20 mating cycles
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Heat Resistance: 110°C for 96 hours
- Packaging: Bulk and carton, in accordance with specifications
Buy the WURTH ELEKTRONIK Series Flat Flexible Cable: 687618200002
Enhance your electronic assembly with our high-quality flat flexible cable, offering excellent insulation, flexibility, and durability. Designed for seamless integration in various electronic equipment, it supports reliable data and power transmission. Ideal for manufacturing, repair, and prototyping applications, this 0.50 mm type cable is RoHS compliant and UL recognized, ensuring safety and performance. Purchase online today to secure fast delivery and competitive prices, enabling you to meet your project timelines with confidence and precision.
Order your WURTH ELEKTRONIK Series Flat Flexible Cable today and ensure reliable, flexible electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687618200002?
You can click on the BUY or RFQ button to purchase 687618200002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687618200002?
You can download the 687618200002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687618200002?
WURTH ELEKTRONIK
