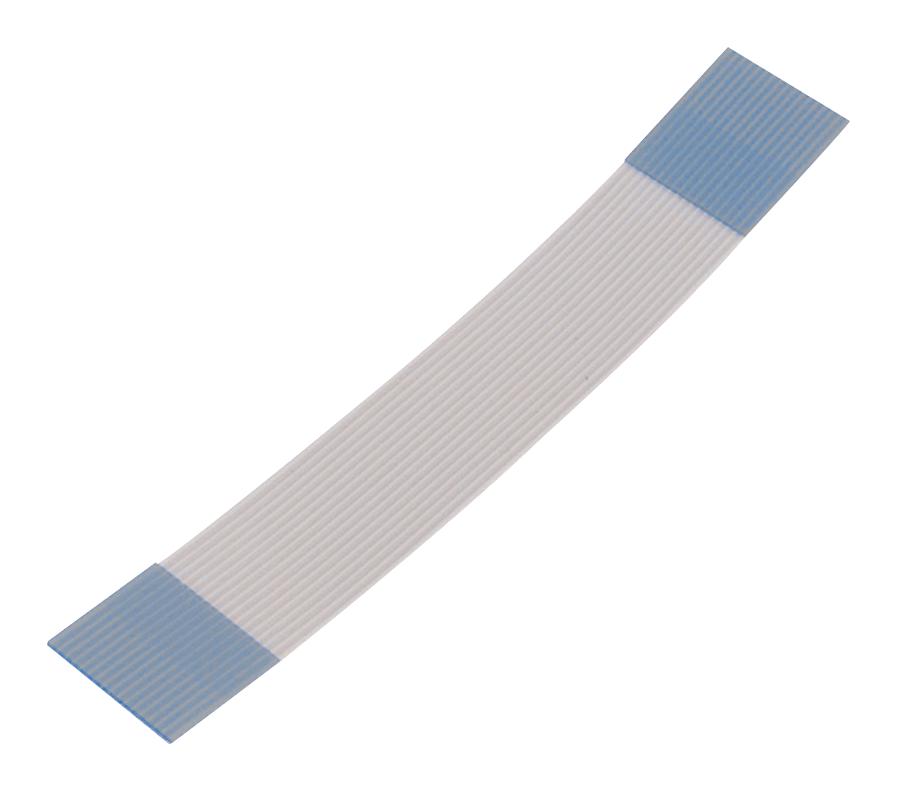

WURTH ELEKTRONIK 687622050002 Flat Flexible Cable
WURTH ELEKTRONIK offers a reliable flat flexible cable designed for versatile electronic applications. This type 1, 0.50 mm cable features durable PET insulation (white) with blue support tape, rated for operating temperatures from -30°C to +105°C. It complies with UL 758 flammability ratings and has been tested for moisture, heat resistance, and electrical stability, including rated current of 0.5 A and working voltage up to 60 V. Suitable for complex electronic assemblies, it ensures high reliability in demanding environments with durability for up to 20 mating cycles.
WURTH ELEKTRONIK 687622050002 Flat Flexible Cable Specifications:
- Material: PET insulating material, copper contact material with tin plating
- Conductor Thickness: 0.05 mm
- Support Tape: PET, blue
- Support Tape Length: 8 mm
- Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Maximum Operating Temperature: +105°C
- Minimum Operating Temperature: -30°C
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (DC), 1000 MΩ minimum
- Flammability Rating: UL SUB.758
- Mechanical Durability: 20 mating cycles
- Compliance: Rots approval, REACH, UL, CSA
- Packaging: Bag or bulk, according to order quantities
Buy the WURTH ELEKTRONIK 687622050002 – Reliable Flat Flexible Cable for Industrial Applications
Purchase WURTH ELEKTRONIK Flat Flexible Cable online today for your electronic projects. Its 0.50 mm pitch, PET insulation, and blue support tape ensure durability and performance in demanding environments. Perfect for complex electronic assemblies requiring reliable connections, it features high heat resistance, UL flammability compliance, and moisture resistance. With a rated current of 0.5 A and voltage up to 60 V, this flexible cable is ideal for industrial automation, communication systems, and embedded electronics. Get yours now for fast delivery and quality assurance.
Get WURTH ELEKTRONIK 687622050002 today—designed for high reliability and optimal performance in electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687622050002?
You can click on the BUY or RFQ button to purchase 687622050002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687622050002?
You can download the 687622050002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687622050002?
WURTH ELEKTRONIK
