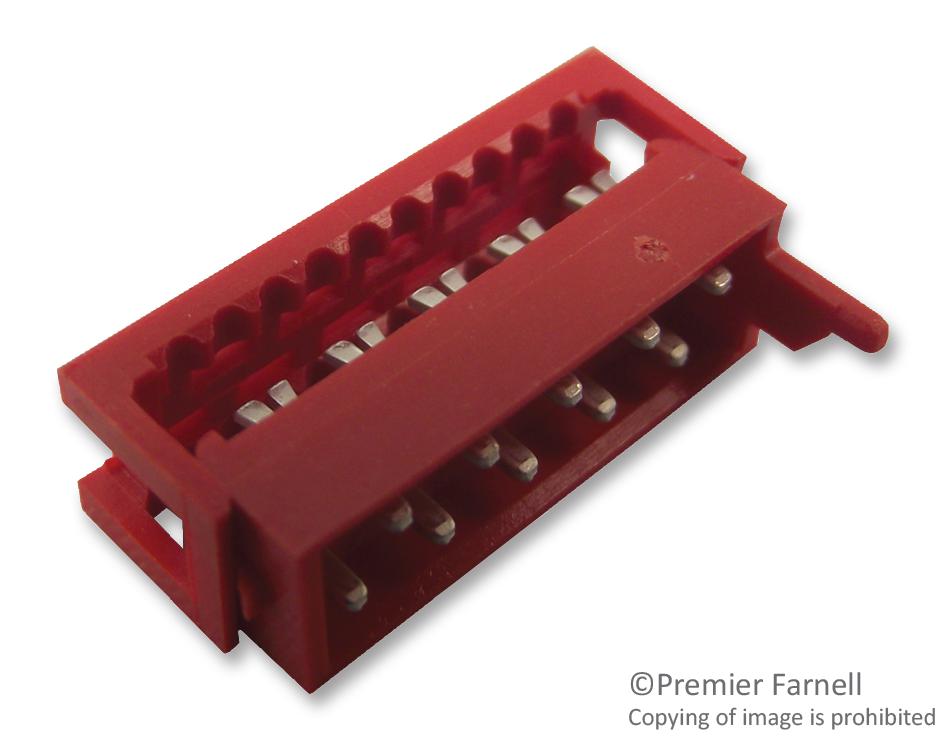

WURTH ELEKTRONIK 690157001072 IDC Connector
The WR-MM Male IDC Connector by Wurth Elektronik is a high-quality, durable electrical component designed for efficient wire-to-board connections in electronic assemblies. Constructed with a PBT insulator rated UL94V-0 and matte tin-plated phosphor bronze contacts, it offers robust performance with a rated current of 1 A per pin and a working voltage of 250 V. With a temperature operating range from -40°C to +105°C, it assures reliable functionality in diverse industrial and electronic applications, supporting 25 mating cycles for long-term use. Packaging and proper care are essential for optimal performance and safety compliance.
WURTH ELEKTRONIK 690157001072 IDC Connector Specifications:
- Pins: 10
- Pin to Pin (Middle): 11.43 mm
- Length L: 16.13 mm
- Pitch P per Row: 2.54 mm
- Durability: 25 Mating cycles
- Material Insulator: PBT, UL94V-0, Red
- Contact Material: Phosphor Bronze
- Contact Plating: Matte Tin over Nickel
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A per Pin
- Working Voltage: 250 V
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max 10 mΩ
- Insulation Resistance: Min 1000 MΩ
- Certification: RoHS, REACh, cULus
- Package: Standard packaging unit
Buy the Wurth Elektronik 690157001072 – Reliable IDC Connector for Industrial Applications
Discover the high-quality IDC connector by Wurth Elektronik, featuring robust PBT insulator, phosphor bronze contacts with tin plating, rated for 1 A and 250 V. Designed for reliable connections in industrial electronics, it supports 25 mating cycles and operates from -40°C to +105°C. Its compact design ensures easy installation and high durability, making it suitable for a wide range of electronic systems demanding safety and longevity. Purchase online now for a dependable solution that meets industry standards and safety regulations.
Get Wurth Elektronik 690157001072 today—built for precision, durability, and reliable wire-to-board connections in industrial environments.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 690157001072?
You can click on the BUY or RFQ button to purchase 690157001072 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 690157001072?
You can download the 690157001072 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 690157001072?
WURTH ELEKTRONIK
