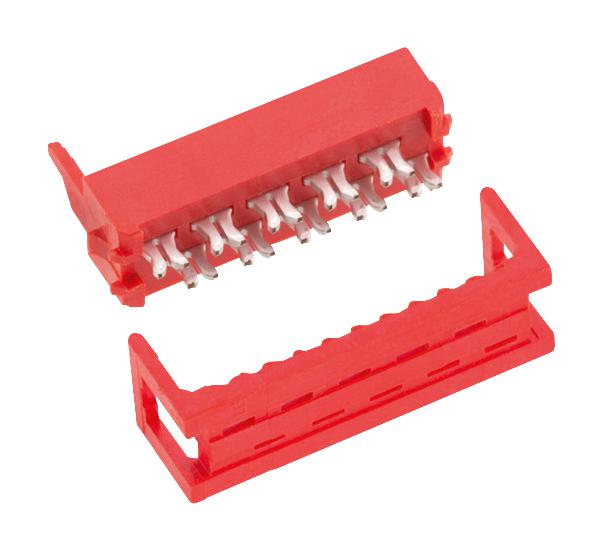

WURTH ELEKTRONIK 690157001672 IDC Connector
The WR-MM Male IDC Connector from Wurth Elektronik offers reliable connection in electronic assemblies with a 7-pin configuration, made from phosphor bronze contacts plated with matte tin over nickel. Designed with a robust insulator of PBT material rated UL94V-0 in bright red, it withstands temperatures from -40°C to +105°C. Suitable for applications requiring up to 1 A current and 250 V AC, it supports 25 mating cycles. This connector features precise dimensions, ensuring easy installation and durability in complex electronic systems, conforming to RoHS and REACh standards.
WURTH ELEKTRONIK 690157001672 IDC Connector Specifications:
- Pins: 7
- Pin to Pin (Middle): P, aaa =
- Length L: 23.75 mm
- Pitch P per Row: 2.54 mm
- Material: PBT insulator, Phosphor Bronze contacts
- Contact Plating: Matte Tin over Nickel
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A per Pin
- Working Voltage: 250 V AC
- Withstanding Voltage: 500 V AC for 1 min
- Contact Resistance: Max. 10 mo
- Insulation Resistance: Min. 1000 Mo
- Durability: 25 Mating cycles
- Certification: RoHS, REACh, cULus approved
Buy the Wurth Series IDC Connector: 690157001672
Order the Wurth IDC Connector now and ensure high-quality, reliable electrical connectivity for your electronic projects. Designed for durability with a precise fit, this 7-pin connector features a PBT insulator, phosphor bronze contacts plated in matte tin over nickel, supporting up to 1 A and 250 V AC. Suitable for various industrial and electronic assemblies, it withstands temperatures from -40°C to +105°C and offers 25 mating cycles for extended use. Easily install this durable connector for secure electrical connections in complex systems. Order online today and enhance your device's performance with proven quality.
Buy Wurth Elektronik IDC Connector 690157001672 now and experience unmatched reliability and performance in electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 690157001672?
You can click on the BUY or RFQ button to purchase 690157001672 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 690157001672?
You can download the 690157001672 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 690157001672?
WURTH ELEKTRONIK
