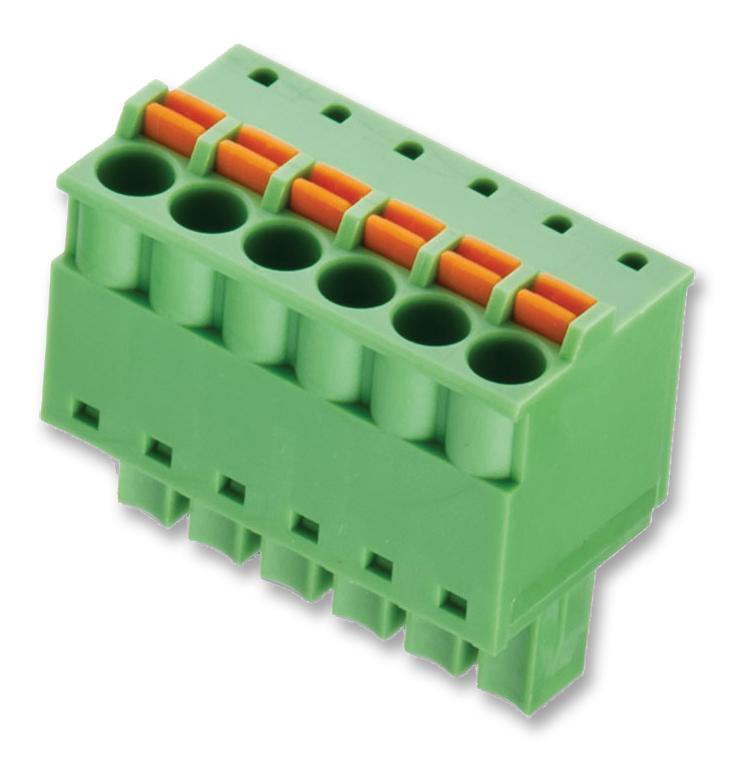

WURTH ELEKTRONIK 691368300002B Cable Entry Plug
This series 368B vertical cable entry plug with a 3.81mm pitch is designed for efficient cable management in electronic assemblies. Made from UL94-VO flammability-rated PA 66 insulator, it features stainless steel spring contacts, tin-plated phosphor bronze wire guards, and is capable of handling up to 8A at 300VAC with a withstand voltage of 2.0kV. Suitable for a range of wire sizes from 28-16 AWG, it ensures high reliability, environmental compliance, and is RoHS certified for safety. The plug is ideal for various electronic equipment requiring secure, durable cable connections, offering a compact and reliable solution for engineers in industrial, automation, and control applications. Its robust construction supports high safety and performance standards in demanding environments.
WURTH ELEKTRONIK 691368300002B Cable Entry Plug Specifications:
- Pitch: 3.81 mm
- Poles: 2
- Insulator Material: PA 66
- Flammability Rating: UL94-VO
- Color: Green & Orange
- Metal Spring: Stainless Steel Strip
- Wire Guard: Tin Plated Phosphor Bronze
- Operating Temperature: -40°C to 115°C
- Environmental Compliance: RoHS, Lead-Free
- Electrical Rating: 8A, 300VAC
- Withstand Voltage: 2.0KV
- Contact Resistance: 20 mOhm max
- Wire Sizes: 28-16 AWG (solid/stranded)
- Wire Strip Length: 9 mm
- Overall Size: Width 40.1 mm, Length 54.14 mm
- Certification: UL, cULus, QML Certified E315414
Buy the Buy Wurth Elektronik Series 368B Cable Entry Part Number 691368300002B Online
Secure your electronic assemblies with the high-quality Wurth Elektronik cable entry plug. Featuring a 3.81mm pitch, UL94-VO rated PA 66 insulator, and stainless steel spring contacts, it offers reliable performance up to 8A at 300VAC. This RoHS compliant connector supports wire sizes from 28-16 AWG, with a 9mm wire strip length, ensuring easy installation in demanding environments. Perfect for industrial, automation, and control systems, it guarantees safety, durability, and compliance—making it an essential choice for engineers seeking trusted, long-lasting cable management solutions.
Get Wurth Elektronik Series 368B cable entry plug today—designed for secure, durable, and high-performance electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 691368300002B?
You can click on the BUY or RFQ button to purchase 691368300002B from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 691368300002B?
You can download the 691368300002B datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 691368300002B?
WURTH ELEKTRONIK
