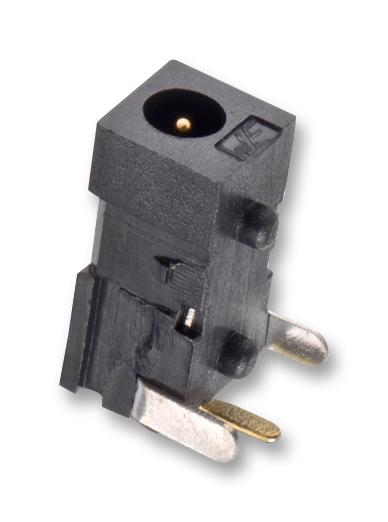

WURTH ELEKTRONIK 694101308002 Power Jack
The WR-PC DC Power Jack THT Right Angle is a durable, angled low-profile connector designed for reliable power connections in electronic equipment. Constructed with copper alloy contacts plated with tin and gold, it supports up to 2 A at 12 V withstanding voltage of 500 VAC, and features a UL94 V-0 rated insulator in black. Suitable for wave soldering with a maximum operating temperature of 85°C, it ensures high reliability for industrial and general electronic applications, offering over 5000 mating cycles and RoHS compliance.
WURTH ELEKTRONIK 694101308002 Power Jack Specifications:
- Rated Current: 2 A
- Working Voltage: 12 V
- Withstanding Voltage: 500 VAC
- Contact Resistance: 30 mΩ
- Insulation Resistance: 100 MΩ
- Material: Copper Alloy
- Contact Plating: Gold (center pin), Tin (shunt terminal)
- Insulator Material: UL94 V-0 rated plastic, black
- Temperature Rating: -40°C to +85°C
- Durability: 5000 mating cycles
- Soldering Profile: Wave soldering compatible, Pb-Free and Sn-Pb, max. peak temp 260°C
- Size & Dimensions: Opening Diameter 2.8 mm with pegs, recommended hole pattern 55 mm
- Certification: RoHS, UL Approved 323964
Buy the WURTH 694101308002 – Reliable Power Connection for Industrial Applications
Order the WURTH Power Jack THT Right Angle today to ensure a dependable connection in your electronic devices. Designed with copper alloy contacts, gold and tin plating, it supports 2 A at 12 V and withstands up to 500 VAC. With over 5000 mating cycles, high durability, and RoHS compliance, this connector is ideal for industrial and general electronic equipment. Its wave solderable profile, maximum temperature of 85°C, and compact size make it perfect for space-constrained applications. Purchase now for reliable power solutions.
Get WURTH 694101308002 today—built for precision and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 694101308002?
You can click on the BUY or RFQ button to purchase 694101308002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 694101308002?
You can download the 694101308002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 694101308002?
WURTH ELEKTRONIK
