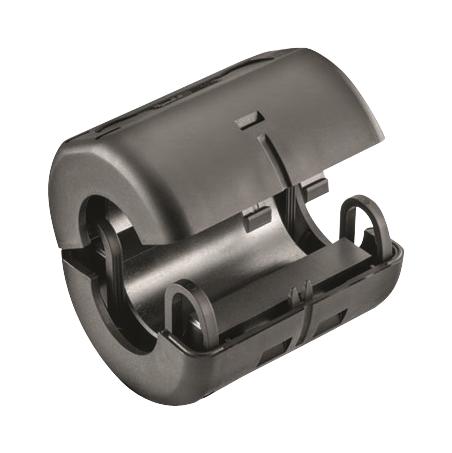

WURTH ELEKTRONIK 74271211S Snap Ferrite with Safety Key
The Würth Elektronik 74271211S Snap Ferrite is a component designed for use in general electronic equipment, offering signal filtering and impedance control. It incorporates a safety key technology to secure the connection and prevent unintended disconnections. The ferrite bead is constructed with a plastic housing, rated UL94-V0, and is intended for use within specified ambient conditions to maintain performance and warranty validity. It is not suitable for applications requiring high safety or reliability standards without prior agreement and thorough evaluation.
WURTH ELEKTRONIK 74271211S Snap Ferrite with Safety Key Specifications:
- Applicable Cable Diameter: 17 - 21 mm
- Impedance @ 25 MHz (1 turn): 233 Ω ±25%
- Impedance @ 100 MHz (1 turn): 425 Ω ±25%
- Impedance @ 25 MHz (2 turns): 889 Ω typ.
- Impedance @ 100 MHz (2 turns): 982 Ω typ.
- Storage Temperature: 0 °C up to +40 °C
- Operating Temperature: -25 °C up to +105 °C
- Material: 4 W 620
- Initial Permeability: 620
- Curie Temperature: 150 °C
- Plastic Housing Color: black
- Flammability Rating Plastic Housing: UL94-V0
- Test Cable: AWG26
- Frequency: 1 - 1000 MHz
