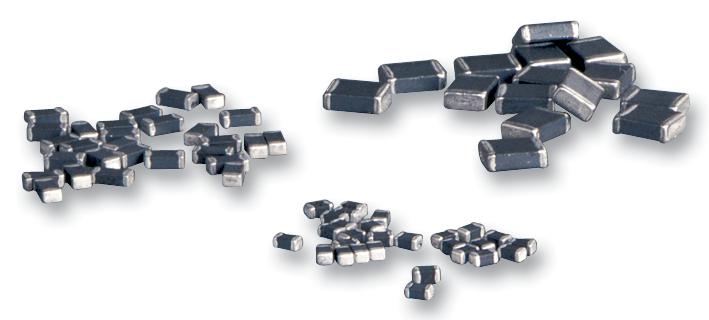

WURTH ELEKTRONIK 742792095 EMI Suppression Ferrite Bead
Surface-mount ferrite chip beads designed for direct placement on printed circuit boards. They provide excellent electromagnetic interference (EMI) suppression and feature low direct current (DC) resistance. Available in sizes ranging from 0402 to 1887, even the smallest size (0402) can achieve maximal impedance at 1000 ohms when placed close to the interference source. These beads have reliable nickel-tin (Ni-Sn) electrodes, support high rated currents up to 6A, and are recommended for reflow soldering. They operate in temperatures from -55°C to +125°C and serve as data line filters for voltage distribution and signal uncoupling. Typical applications include USB 2.0, IEEE 1394, LVDS, control signals, RS232, RS422, DC/DC converters, hard disk drives, fast bus signals, and power supplies, suitable for industrial, power management, consumer electronics, and portable device use.
WURTH ELEKTRONIK 742792095 EMI Suppression Ferrite Bead Specifications:
- Size: 0402 to 1887
- Impedance @ 100 MHz: 2700 Ω +25%
- Maximum impedance at 100 MHz: 2700 Ω
- Rated current: up to 6A
- DC Resistance: 0.60 Ω max.
- Operating Temperature Range: -55°C to +125°C
- Material: Ni-Sn electrodes
- Soldering: Reflow recommended
- Applications: EMI suppression on data lines, voltage filtering, signal uncoupling
- Suitable for USB 2.0, IEEE 1394, LVDS, RS232, RS422, DC/DC, HDD, power supplies
- Package Type: Surface-mount chip bead
Buy the Buy WURTH ELEKTRONIK EMI Suppression Ferrite Bead Part Number 742792095 Online
Purchase the WURTH ELEKTRONIK EMI suppression ferrite bead 742792095 online today to ensure your electronic devices operate with minimal electromagnetic interference. These high-quality surface-mount beads are ideal for controlling noise in signal lines, voltage distribution, and power management applications. Designed for maximum impedance up to 2700 ohms at 100 MHz and capable of supporting currents up to 6A, they are suitable for industrial, consumer, and portable electronics. Enhance your electronic design’s reliability by ordering now and benefiting from fast delivery, great prices, and trusted quality.
Buy WURTH ELEKTRONIK 742792095 now and experience reliable EMI suppression and optimal signal filtering for your PCB designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 742792095?
You can click on the BUY or RFQ button to purchase 742792095 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 742792095?
You can download the 742792095 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 742792095?
WURTH ELEKTRONIK
