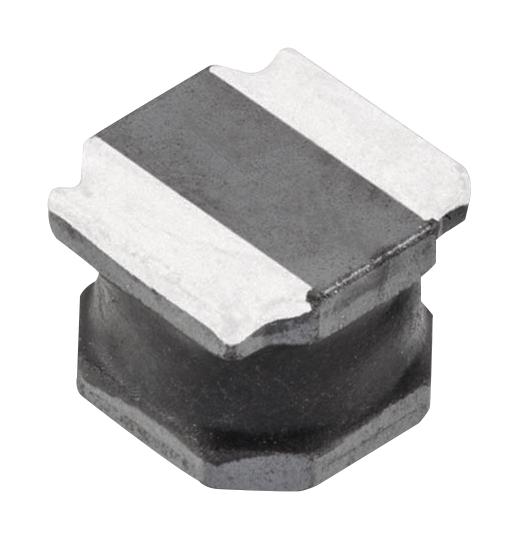

WURTH ELEKTRONIK 74404086152 SMD Power Inductor
The Würth Elektronik WE-LQS 74404086152 is a surface-mount power inductor designed for use in a variety of electronic applications. This inductor offers a high inductance value of 1500µH, a low DC resistance of 3650 mΩ, and a self-resonant frequency of 1.13 MHz, making it suitable for power management and filtering circuits. It is designed for general electronic equipment and is RoHS compliant, ensuring environmental responsibility. Würth Elektronik emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 74404086152 SMD Power Inductor Specifications:
- Inductance: 1500 µH ±20%
- Rated Current: 0.36 A max.
- Saturation Current: 0.54 A typ.
- DC Resistance: 3650 mΩ ±20%
- Self Resonant Frequency: 1.13 MHz typ.
- Ambient Temperature: -40 °C up to +85 °C
- Operating Temperature: -40 °C up to +125 °C
- Storage Temperature: -20 °C up to +60 °C
- Max Ramp Up Rate: 3 °C/s
- Max Ramp Down Rate: 6 °C/s
- Liquidous Temperature: 217 °C
- Preheat Time ts from Ts min to Ts max: 60 - 120 seconds
- Pull-of force: 0.1 N - 1.3 N
- Tape width: 16 mm
Buy the 74404086152 WURTH ELEKTRONIK SMD Power Inductor | myMectronic
Purchase the Würth Elektronik WE-LQS 74404086152 SMD Power Inductor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 74404086152?
You can click on the BUY or RFQ button to purchase 74404086152 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 74404086152?
You can download the 74404086152 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 74404086152?
WURTH ELEKTRONIK
