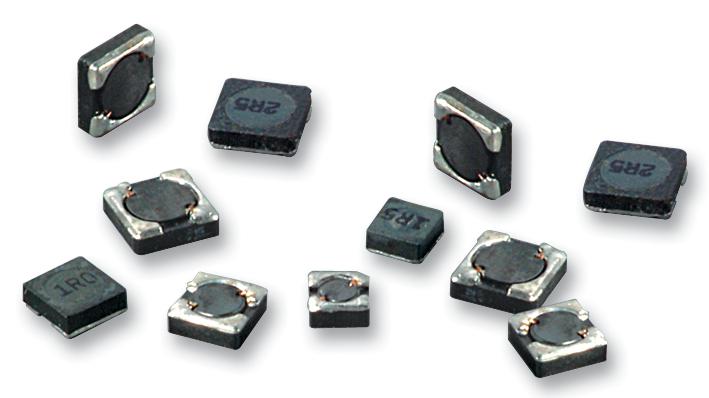

WURTH ELEKTRONIK 744062470 Shielded Power Inductor
Würth Electronics WE-TPC series are surface-mount, shielded power inductors with a compact, flat design and 4-pad layout providing high mechanical stability. Featuring magnetic shielding, they greatly reduce stray magnetic fields, suitable for applications demanding minimal electromagnetic interference. They handle high currents, have an extremely flat profile, and operate across -40°C to +125°C. Recommended soldering method is reflow soldering. These inductors are designed for general electronic equipment, with high reliability and compliance with RoHS, REACH, and halogen-free standards, making them ideal for power conversion and noise filtering in various electronic devices.
WURTH ELEKTRONIK 744062470 Shielded Power Inductor Specifications:
- Dimensions: 6.80 mm ±0.2, 2.30 mm ±0.2
- Recommended Land Pattern: 6.80 mm with land spacing
- Electrical Properties: Inductance 47 μH at 100 kHz/100 mV, max. DC Resistance 280 mΩ at 20°C, Saturation Current 0.62 A, Rated Current 0.73 A, Self Resonant Frequency 12 MHz
- Operating Temperature Range: -40°C to +125°C
- Ambient Temperature: -40°C up to +95°C
- Storage Conditions: < 40°C, < 75% RH, in original packaging
- Standards Compliance: RoHS, REACH, Halogen Free (JEDEC JS709B, IEC 61249-2-21), Level 1 Moisture Sensitivity
- Soldering Method: Reflow recommended with profile conforming to IPC/J-STD-020E
Buy the Buy Würth Electronics WE-TPC Part Number 744062470 Online
Purchase the Würth Electronics WE-TPC shielded power inductor Part 744062470 online today for high-quality performance in electronic applications. Its compact flat design, high current capacity, and magnetic shielding make it ideal for power filtering, noise reduction, and compact assemblies. Suitable for various temperature ranges, this inductor guarantees durability and reliability, compliant with RoHS, REACH, and industry standards. Enjoy fast delivery, secure checkout, and the confidence that comes with sourcing proven power inductors online for your electronic projects.
Order your Würth Electronics WE-TPC shielded power inductor Part 744062470 today and ensure reliable performance with minimal electromagnetic interference.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744062470?
You can click on the BUY or RFQ button to purchase 744062470 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744062470?
You can download the 744062470 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744062470?
WURTH ELEKTRONIK
