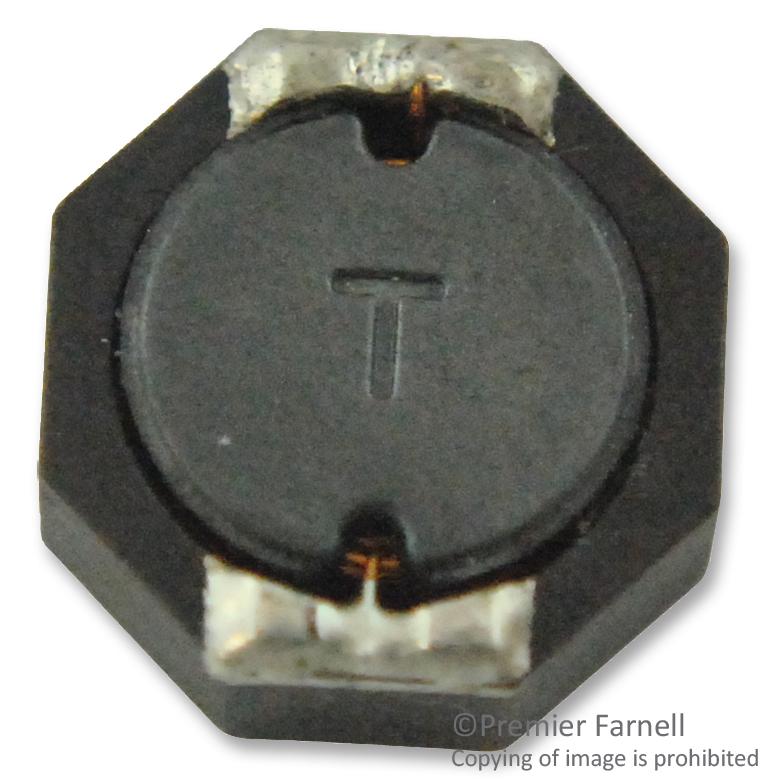

WURTH ELEKTRONIK 744065100 Power Inductor
Wurth Electronics WE-TPC series are surface-mount, shielded power inductors with a compact, flat design and four pads for mechanical durability. These inductors handle high current and feature magnetic shielding to reduce stray magnetic fields, suitable for low electromagnetic interference applications. They operate reliably from -40°C to +125°C, making them ideal for electronic equipment demanding high performance. Proper soldering, especially reflow, is recommended, but caution is advised during cleaning processes, as certain agents may damage the component. They comply with RoHS, REACH, and halogen-free standards, ensuring environmentally responsible use.
WURTH ELEKTRONIK 744065100 Power Inductor Specifications:
- Inductance: 10 +0.3 µH
- Rated Current: 3 A
- Saturation Current: 25 A
- DC Resistance at 20°C: 40 mo typ., maximum 53 mo.
- Self Resonant Frequency: 25 MHz typ.
- Operating Temperature Range: -40°C to +125°C
- Ambient Temperature: -40°C to +95°C
- Storage Temperature: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Temperature Rating: -40°C to +125°C
- Compatibility: RoHS, REACH, Halogen Free
- Soldering Profile: Preheat min 150°C, max 200°C, Ramp rate 3°C/sec, Peak temp around 260°C
Buy the Buy Wurth Electronics WE-TPC Power Inductor Part Number 744065100 Online
Purchase the Wurth Electronics WE-TPC power inductor online today to ensure high quality and reliable performance. With a compact design capable of handling up to 3 A current and operating efficiently within -40°C to +125°C temperature range, this shielded inductor is perfect for low EMI applications. Its environmentally friendly features include RoHS, REACH, and halogen-free compliance. Ideal for electronic equipment needing compact, durable inductors, ease of assembly, and high electromagnetic shielding. Order now and enhance your circuit's efficiency with this premium component.
Buy Wurth Electronics 744065100 now and experience unmatched reliability and high current performance in your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744065100?
You can click on the BUY or RFQ button to purchase 744065100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744065100?
You can download the 744065100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744065100?
WURTH ELEKTRONIK
