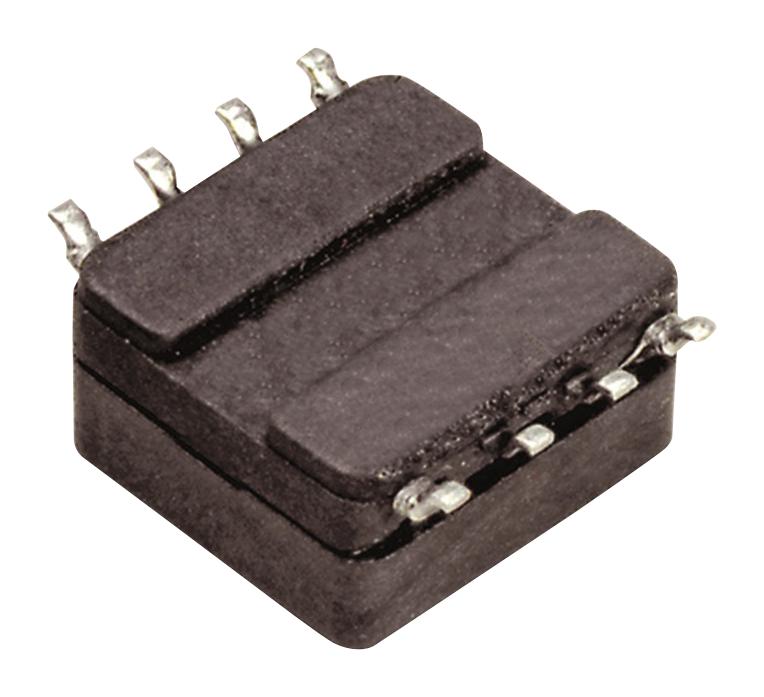

WURTH ELEKTRONIK 744203 Common Mode Filter
The WE-SL SMD Common Mode Line Filter is a high-quality, surface-mount component designed for noise suppression in electronic circuits. It features a compact design with a maximum ambient temperature of +85°C and an operating temperature range from -40°C up to +125°C, ensuring reliable performance in various environments. It provides effective filtering of common mode noise, with a rated voltage of 80V and insulation test voltage of 500Vac. Ideal for suppressing electrical interference and improving signal integrity in sensitive electronic equipment, this filter meets international standards and customer safety requirements.
WURTH ELEKTRONIK 744203 Common Mode Filter Specifications:
- Rated Voltage: 80 V maximum
- Insulation Test Voltage: 500 Vac maximum
- Ambient Temperature Range: -40°C to +85°C
- Operating Temperature Range: -40°C to +125°C
- Max Temperature of Component: +125°C
- Storage Temperature: -20°C to +40°C, <75% RH
- Impedance at 100 kHz / 100 mV: 500 μΩ +35%
- Max DC Resistance: 0.3 Ω
- Leakage Inductance: 140 mH ± yp
- Maximum Impedance: 3000 Ω
- Electrical test conditions at +20°C, 33% RH
- Compliance with IEC 60286-3:2013 packaging standard
- Suitable for SMT reflow soldering with specified temperature profiles
- Product marking includes inductance code 501
- Designed to ensure long-term reliability in electrical interference suppression
- Operational in high-frequency environments, with impedance characteristics up to 10 MHz
Buy the Wurth Series Common Mode Filter: 744203
Purchase the Wurth 744203 Common Mode Filter online today to enhance your electronic circuits with reliable noise suppression. This high-quality SMT filter offers excellent performance in reducing electromagnetic interference, ensuring signal integrity and compliance with international safety standards. Its compact design allows easy integration into various electronic assemblies, making it ideal for industrial, automotive, and consumer electronics. Order now to benefit from fast delivery, authentic Wurth quality, and superior performance in your electromagnetic compatibility solutions.
Get Wurth 744203 today—built for precision and long-lasting durability in electrical noise suppression.
