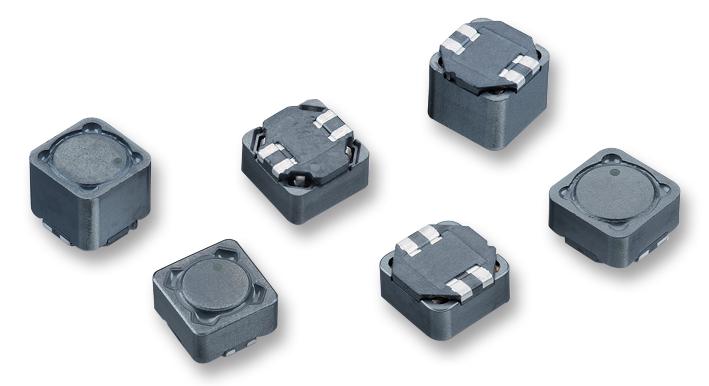

WURTH ELEKTRONIK 744282102 Common Mode Filter
The WURTH ELEKTRONIK WE-SCC SMD Common Mode Line Filter is designed for general electronic equipment applications, providing reliable filtering of common mode noise. It features a compact size with recommended land pattern dimensions, high impedance up to 160 kΩ, rated current of 250 mA, and insulation voltage of 250 V. Suitable for products requiring EMI suppression and high safety standards, it is constructed with quality materials ensuring durability. The component’s maximum operating temperature is 125°C, with ambient conditions from -40°C to +85°C, making it ideal for diverse industrial use.
WURTH ELEKTRONIK 744282102 Common Mode Filter Specifications:
- Size: 1260
- Impedance Max: 160000 Ω
- Rated Current: 250 mA
- Insulation Test Voltage: 250 V
- Temperature Rating: -40°C to +125°C
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -20°C to +40°C
- Package: Tape and reel, 1260 size
- Compliance: RoHS & REACH
- Material: High-quality magnetic and dielectric materials
- Max. Ramp Up Rate: 3°C/s
- Max. Ramp Down Rate: 6°C/s
- Preheat Temperature Min: 150°C
- Preheat Temperature Max: 200°C
- Preheat Time: 60-120 seconds
- Peak Temperature (Tₚ): According to IPC/JEDEC standards
- Reflow Profile: Pb-free, specific temperature and time profiles
- Application: EMI suppression, common mode filtering
Buy the WURTH ELEKTRONIK WE-SCC – Reliable EMI Filter for Industrial Applications
Upgrade your electronic circuitry with the WURTH ELEKTRONIK WE-SCC Common Mode Filter, engineered for high-performance EMI suppression. Its compact size and robust construction ensure high impedance up to 160 kΩ, rated for 250 mA current and operating at temperatures up to 125°C. Ideal for industrial, medical, and communication equipment, this filter reduces electromagnetic interference and enhances signal integrity. Easy to install with tape and reel packaging, this component provides dependable, high-quality performance for demanding applications.
Buy WURTH ELEKTRONIK WE-SCC now and experience unmatched reliability and superior EMI filtering performance in your electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744282102?
You can click on the BUY or RFQ button to purchase 744282102 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744282102?
You can download the 744282102 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744282102?
WURTH ELEKTRONIK
