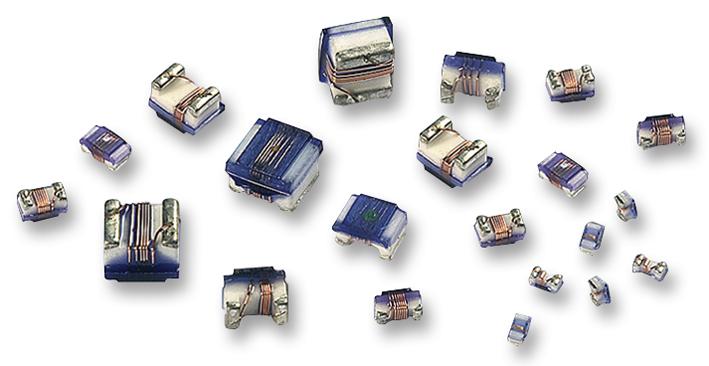

WURTH ELEKTRONIK 744765039A Wire Wound Ceramic Inductor
Wurth Elektronik's SMT Wire Wound Ceramic Inductor is a high-performance electronic component designed for precise filtering and energy storage applications in electronic circuits. It offers excellent inductance characteristics, low resistance, and conforming RoHS, REACH, and halogen-free standards, ensuring safety and environmental compliance. Suitable for various industrial and consumer electronic devices, this inductor provides reliable performance within the recommended operating temperature of -40°C to +125°C. Its compact size and robust construction make it ideal for PCB mounting in high-frequency applications.
WURTH ELEKTRONIK 744765039A Wire Wound Ceramic Inductor Specifications:
- Inductance: 3.9 nH
- Q-Factor @ 250 MHz: 20 min.
- Self-Resonant Frequency: 5800 MHz min.
- DC Resistance: 0.066 Ω max.
- Rated Current: 840 mA max.
- Temperature Range: -40°C to +125°C
- RoHS, REACH, Halogen Free, AEC-Q200 Grade 1 compliant
- Package Size: SMD 402 size (inch or mm not specified)
- Storage Conditions: < 40°C, < 75% RH, shelf life 12 months
- Soldering Profile: Preheat at 150–200°C, peak temp 260°C, 20–30 seconds, ramp rate 3°C/sec, cool down max 6°C/sec
- Moisture Sensitivity Level: 1
Buy the Buy Wurth Elektronik Inductor Part Number 744765039A Online
Enhance your circuit designs with the high-quality Wurth Elektronik wire wound ceramic inductor. Compact, reliable, and RoHS compliant, this inductor offers excellent Q-Factor and high self-resonant frequency suitable for various industrial and consumer electronics. Designed to operate within -40°C to +125°C, it ensures precise filtering and energy storage in high-frequency applications. Easy to mount on PCB with proven durability, order online now for fast delivery and upgrade your electronic projects with confidence.
Buy Wurth Elektronik 744765039A inductor now and experience unmatched reliability and performance in your high-frequency electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744765039A?
You can click on the BUY or RFQ button to purchase 744765039A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744765039A?
You can download the 744765039A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744765039A?
WURTH ELEKTRONIK
