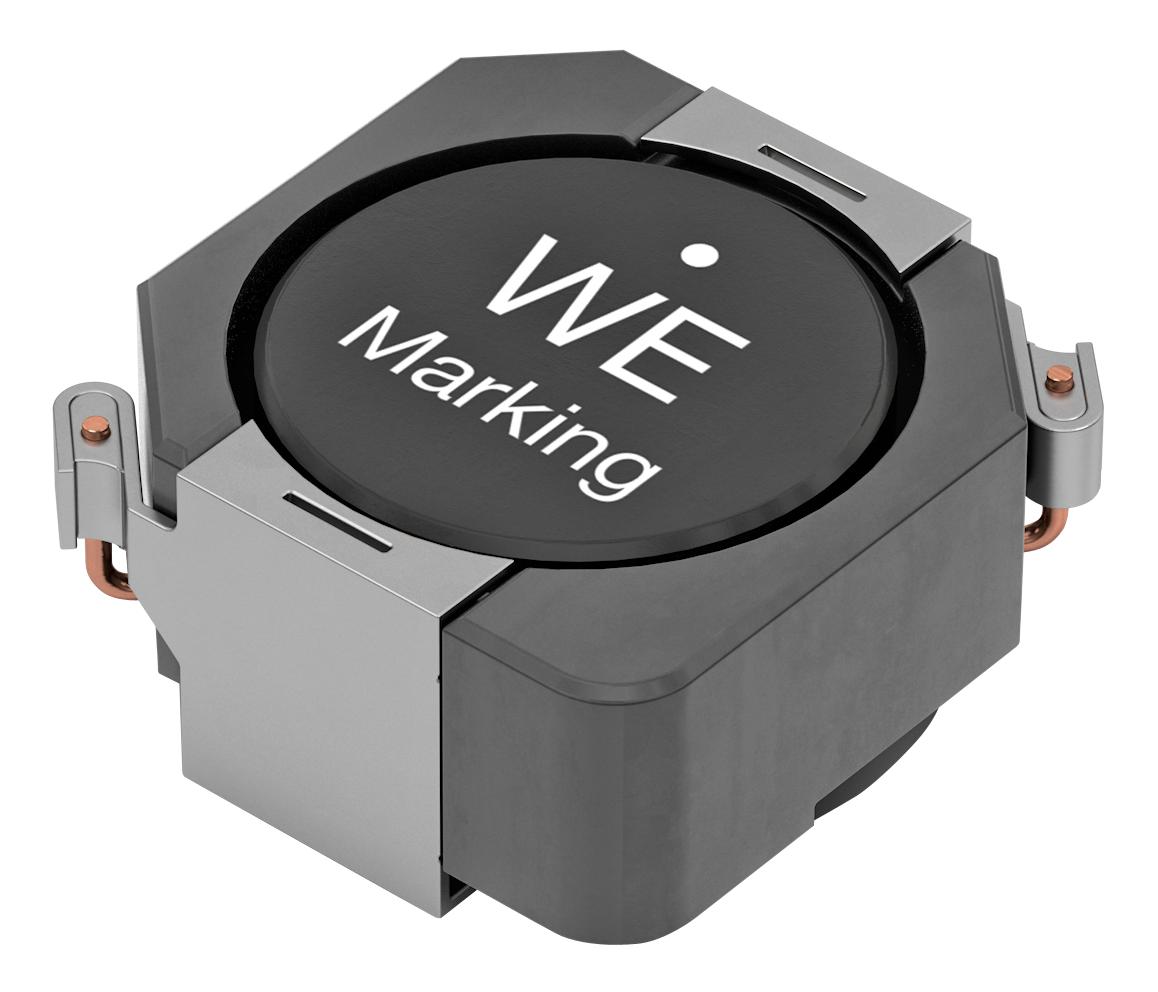

WURTH ELEKTRONIK 7447706220 Shielded Power Inductor
The Würth Elektronik 7447706220 is a shielded power inductor designed for surface mount technology (SMT) applications. It provides a compact solution for power management in various electronic devices, offering an inductance of 22µH with a tight tolerance of ±20%. The inductor's rated current is 3.7A, and its saturation current is 5.2A, making it suitable for applications requiring efficient power transfer. It is AEC-Q200 Grade 1 compliant, ensuring high reliability in automotive and other demanding environments. The component's low DC resistance minimizes power losses and improves overall system efficiency. It is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death.
WURTH ELEKTRONIK 7447706220 Shielded Power Inductor Specifications:
- Inductance L: 22 µH ±20%
- Rated Current: 3.7 A max.
- Saturation Current: 5.2 A typ.
- DC Resistance RDC @ 20 °C: 41 mΩ max.
- Self Resonant Frequency fres: 11 MHz typ.
- Operating Voltage: 120 V max.
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Moisture Sensitivity Level (MSL): 1
- Halogen Free: Conform [ JEDEC JS709B ]
- Component Qualification: AEC-Q200 Grade 1
- RoHS Approval: Compliant [ (EC)1907/2006 ]
- REACh Approval: Conform [ (EC)1907/2006 ]
