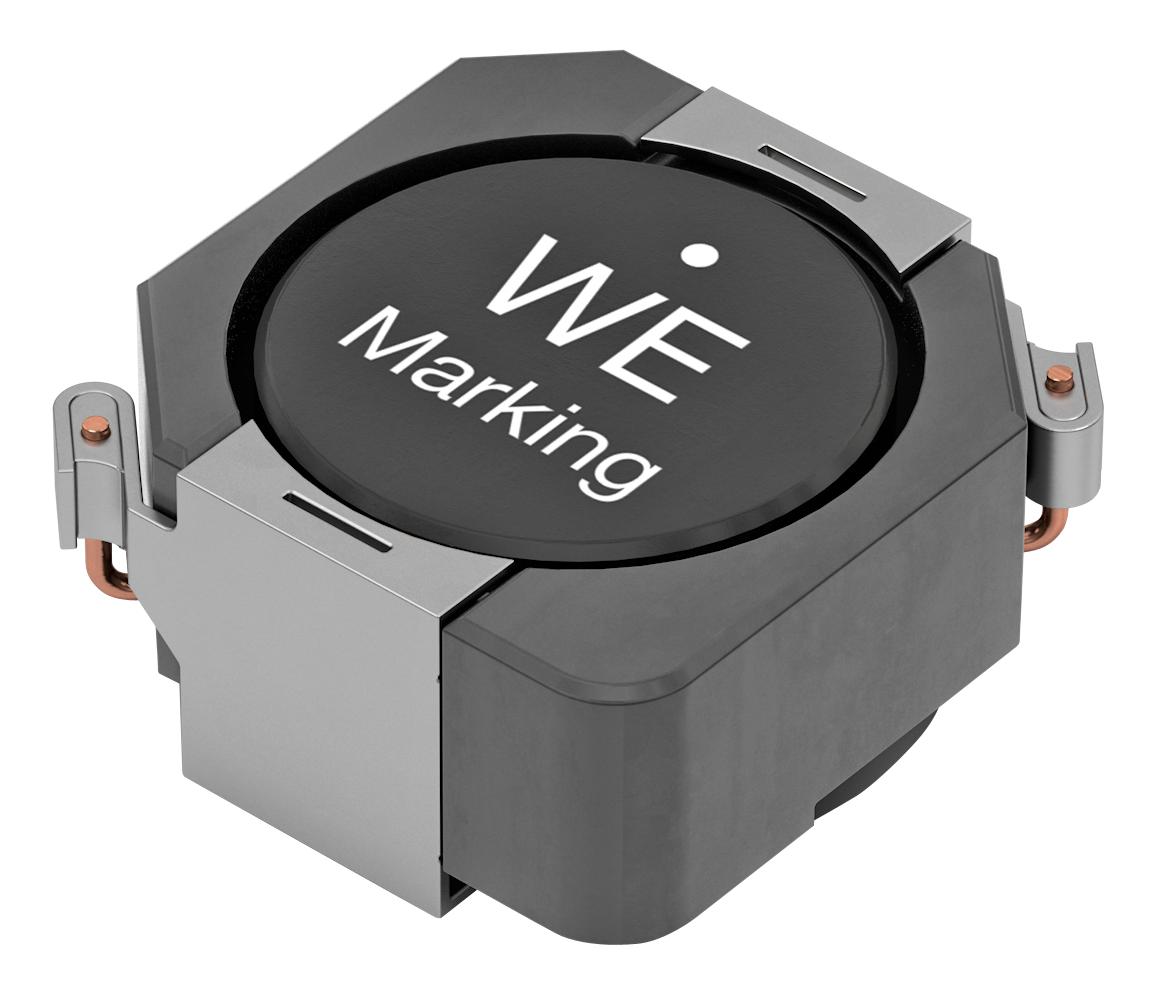

WURTH ELEKTRONIK 7447706680 Shielded Power Inductor
The Würth Elektronik 7447706680 is a shielded power inductor designed for surface mount technology (SMT) applications. This inductor features a 68µH inductance, a DC resistance of 82 mΩ (typical), and a self-resonant frequency of 6.5 MHz. It is RoHS compliant and AEC-Q200 Grade 1 qualified, ensuring reliability in demanding environments. The component is designed for general electronic equipment and is not intended for use in safety-critical applications without proper evaluation. It is ideal for power management circuits, DC-DC converters, and filtering applications where a compact and high-performance inductor is required.
WURTH ELEKTRONIK 7447706680 Shielded Power Inductor Specifications:
- Inductance: 68 µH ±20%
- Rated Current: 2.3 A max.
- Saturation Current: 3 A typ.
- DC Resistance @ 20°C: 82 mΩ typ.
- DC Resistance @ 20°C (max): 97 mΩ max.
- Self Resonant Frequency: 6.5 MHz typ.
- Operating Voltage: 120 V max.
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Storage Conditions: in original packaging < 40 °C ; < 75 % RH
- Moisture Sensitivity Level: 1
- Halogen Free: Conform [ JEDEC JS709B ]
- Component Qualification: AEC-Q200 Grade 1
- RoHS Approval: Compliant [ 2011/65/EU&2015/863 ]
- REACH Approval: Conform [ (EC)1907/2006 ]
Buy the 7447706680 WURTH ELEKTRONIK Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447706680 Shielded Power Inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447706680?
You can click on the BUY or RFQ button to purchase 7447706680 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447706680?
You can download the 7447706680 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447706680?
WURTH ELEKTRONIK
