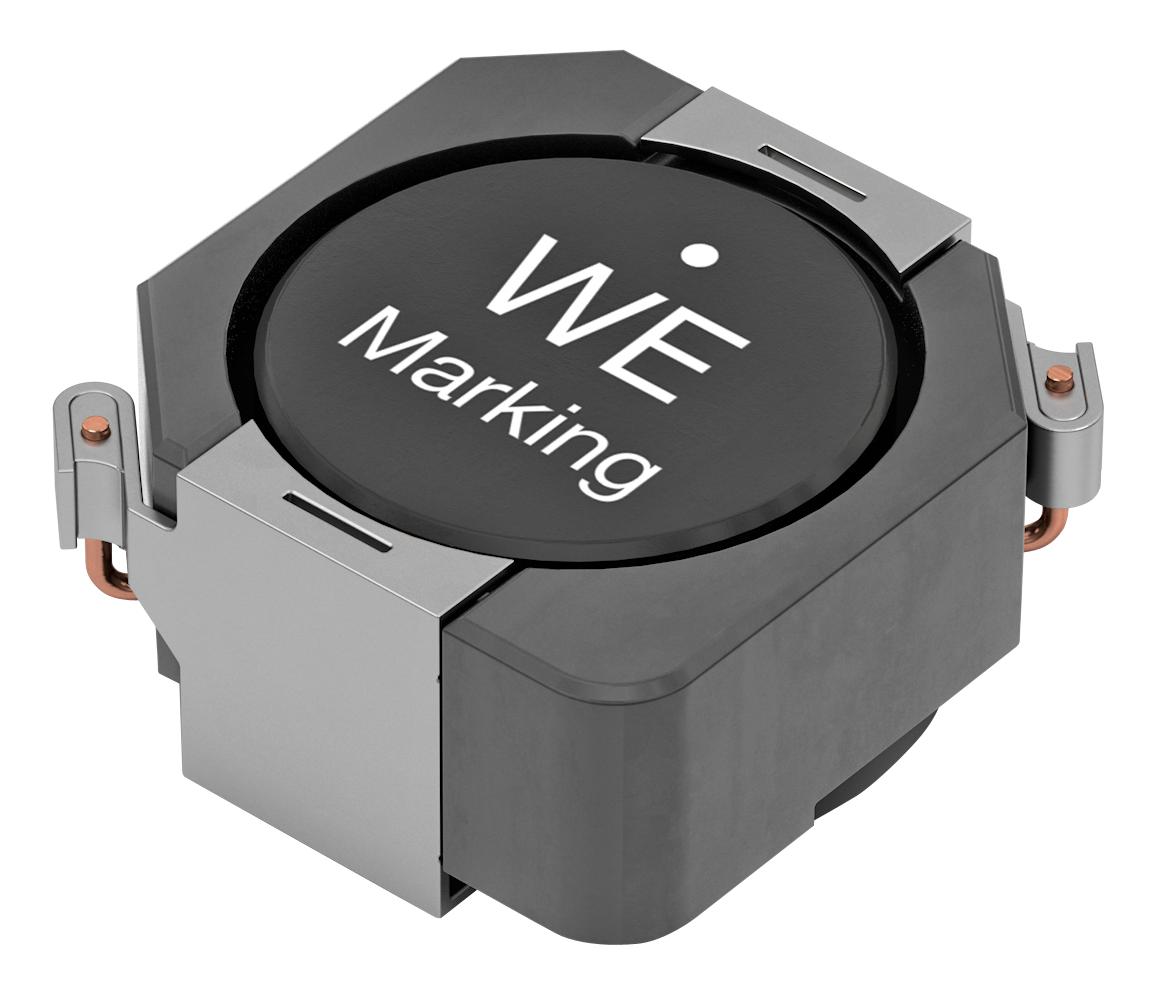

WURTH ELEKTRONIK 7447707068 Shielded Power Inductor
The Würth Elektronik 7447707068 is a shielded power inductor designed for surface mount technology (SMT) applications. It provides a stable inductance of 6.8µH with a tolerance of ±20%, and is rated for a DC resistance of 11.8 mΩ typical. This inductor is suitable for a wide range of power management and filtering applications in general electronic equipment. It is AEC-Q200 Grade 1 compliant, ensuring reliability in automotive and other demanding environments. The component's robust design and shielding minimize electromagnetic interference (EMI), making it ideal for sensitive circuits.
WURTH ELEKTRONIK 7447707068 Shielded Power Inductor Specifications:
- Inductance L: 6.8 µH ±20%
- Rated Current IR: 6.8 A max.
- Saturation Current ISAT: 13 A typ.
- DC Resistance RDC @ 20 °C: 14 mΩ max.
- Self Resonant Frequency fres: 19.1 MHz typ.
- Operating Voltage V DC: 120 V max.
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Moisture Sensitivity Level (MSL): 1
- Halogen Free: Conform [JEDEC JS709B]
- Component Qualification: AEC-Q200 Grade 1
- Inductance Code: 6R8
- Packaging: Tape and Reel
Buy the 7447707068 WURTH ELEKTRONIK Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447707068 Shielded Power Inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447707068?
You can click on the BUY or RFQ button to purchase 7447707068 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447707068?
You can download the 7447707068 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447707068?
WURTH ELEKTRONIK
