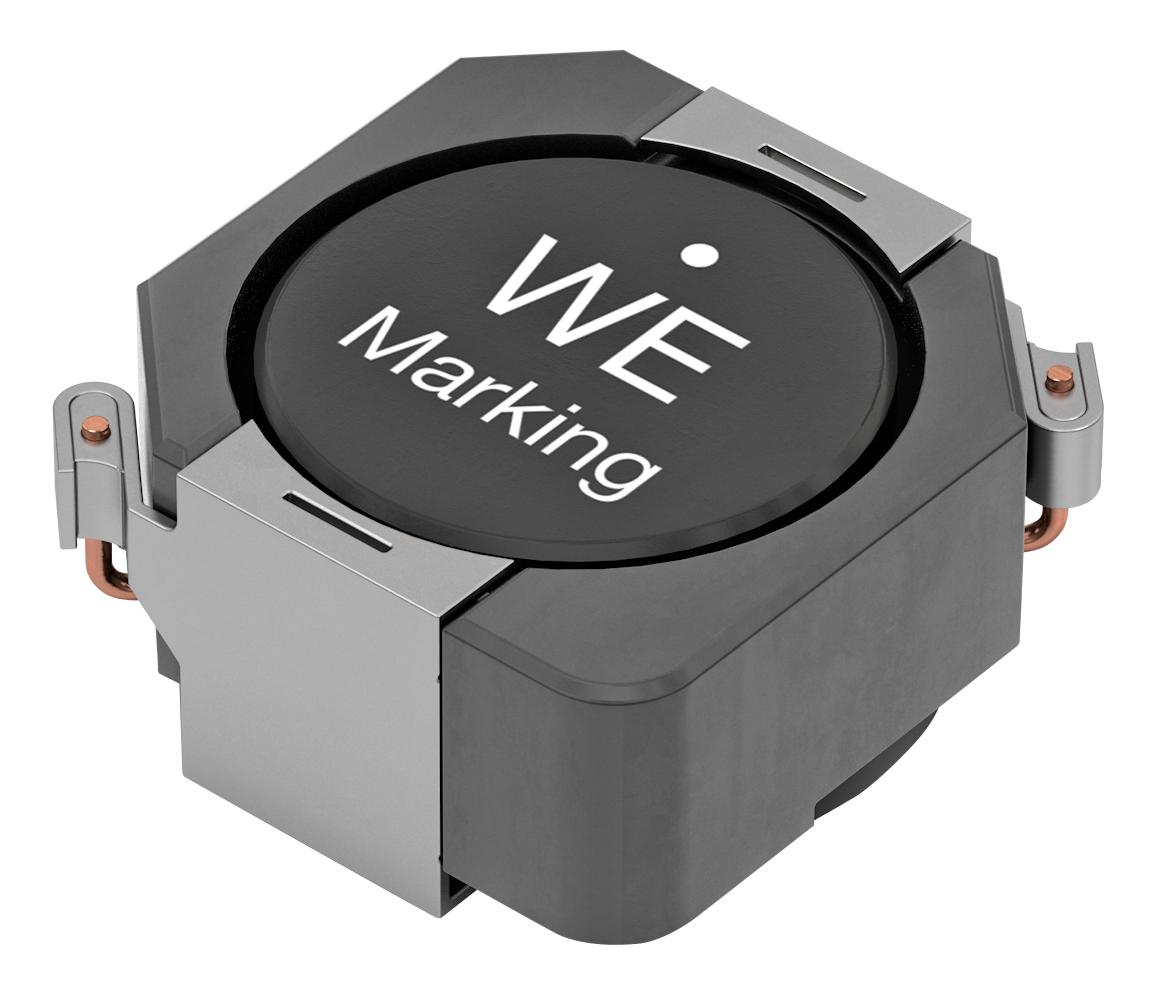

WURTH ELEKTRONIK 7447707101 Shielded Power Inductor
The Würth Elektronik WE-PD series 7447707101 is a shielded power inductor specifically engineered for surface mount technology (SMT) applications. Designed for robust performance, it boasts an inductance of 100µH and a rated current of 2.1A, ensuring efficient power delivery in a compact form factor. The component is AEC-Q200 Grade 1 compliant, making it suitable for demanding automotive and industrial environments. Its shielded construction minimizes electromagnetic interference (EMI), contributing to cleaner and more reliable circuit operation. Typical applications include DC-DC converters, power management circuits, and filtering in a wide range of electronic devices.
WURTH ELEKTRONIK 7447707101 Shielded Power Inductor Specifications:
- Inductance L: 100 µH
- Inductance Tolerance: +-20%
- Rated Current: 2.1 A
- Saturation Current: 3.5 A
- DC Resistance @ 20°C (max): 120 mΩ
- DC Resistance @ 20°C (typ): 105 mΩ
- Self Resonant Frequency: 4.3 MHz
- Operating Voltage: 120 V
- Ambient Temperature: -40 up to +110 °C
- Operating Temperature: -40 up to +150 °C
- Storage Temperature: < 40 °C
- Storage Humidity: < 75 % RH
- Moisture Sensitivity Level: 1
- Halogen Free: Conform [JEDEC JS709B]
- Component Qualification: AEC-Q200 Grade 1
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACH Approval: Conform [(EC)1907/2006]
- Packaging Type: Tape & Reel
Buy the 7447707101 WURTH ELEKTRONIK Shielded Power Inductor | myMectronic
Purchase the Würth Elektronik 7447707101 Shielded Power Inductor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447707101?
You can click on the BUY or RFQ button to purchase 7447707101 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447707101?
You can download the 7447707101 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447707101?
WURTH ELEKTRONIK
