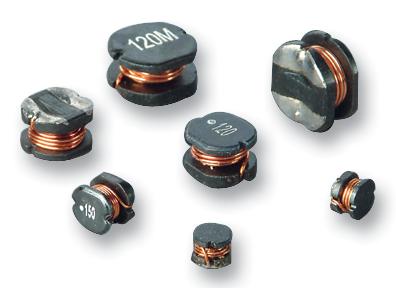

WURTH ELEKTRONIK 744776247 Power Inductor
The WE-PD2 SMT Power Inductor by Wurth Elektronik is a high-performance, surface-mount inductor designed for use in power supply circuits. It features a compact design with a maximum operating temperature of +125°C, RoHS and REACH compliance, and halogen-free construction. Suitable for applications requiring high reliability, it offers inductance options around 470 μH with low DC resistance, high self-resonant frequency, and excellent thermal behavior. The inductor's robust construction ensures durability in demanding electronic environments, making it ideal for switching power supplies and DC-DC converter circuits.
WURTH ELEKTRONIK 744776247 Power Inductor Specifications:
- Inductance: approximately 470 μH with a ±10% tolerance
- Rated Current: 0.44 A at 40°C
- Saturation Current: 0.5 A typ.
- DC Resistance: 0.969 Ω at 20°C, max Rog 1.48 Ω
- Self-Resonant Frequency: 34 MHz typ.
- Operating Voltage: 120 V max.
- Operating Temperature: -40°C to +125°C
- Storage Conditions: < 40°C; < 75% RH
- RoHS and REACH compliant, Halogen-Free
- Dimensions: Compact surface-mount package, designed for industrial electronics and power management applications
Buy the Wurth Elektronik Series SMT Power Inductor: 744776247
Enhance your electronic projects with the Wurth Elektronik SMT Power Inductor, model 744776247. Designed for high performance in power supply circuits, this surface-mount component features low DC resistance, high self-resonant frequency, and operates reliably within a temperature range up to +125°C. Its compliance with RoHS and REACH standards ensures eco-friendly manufacturing. Ideal for switching power supplies and DC-DC converters, this compact inductor guarantees durability and efficient energy management, making it a smart choice for industrial, automotive, and high-reliability applications.
Buy Wurth Elektronik SMT Power Inductor 744776247 now and experience unmatched reliability and power efficiency for your electronic designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744776247?
You can click on the BUY or RFQ button to purchase 744776247 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744776247?
You can download the 744776247 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744776247?
WURTH ELEKTRONIK
