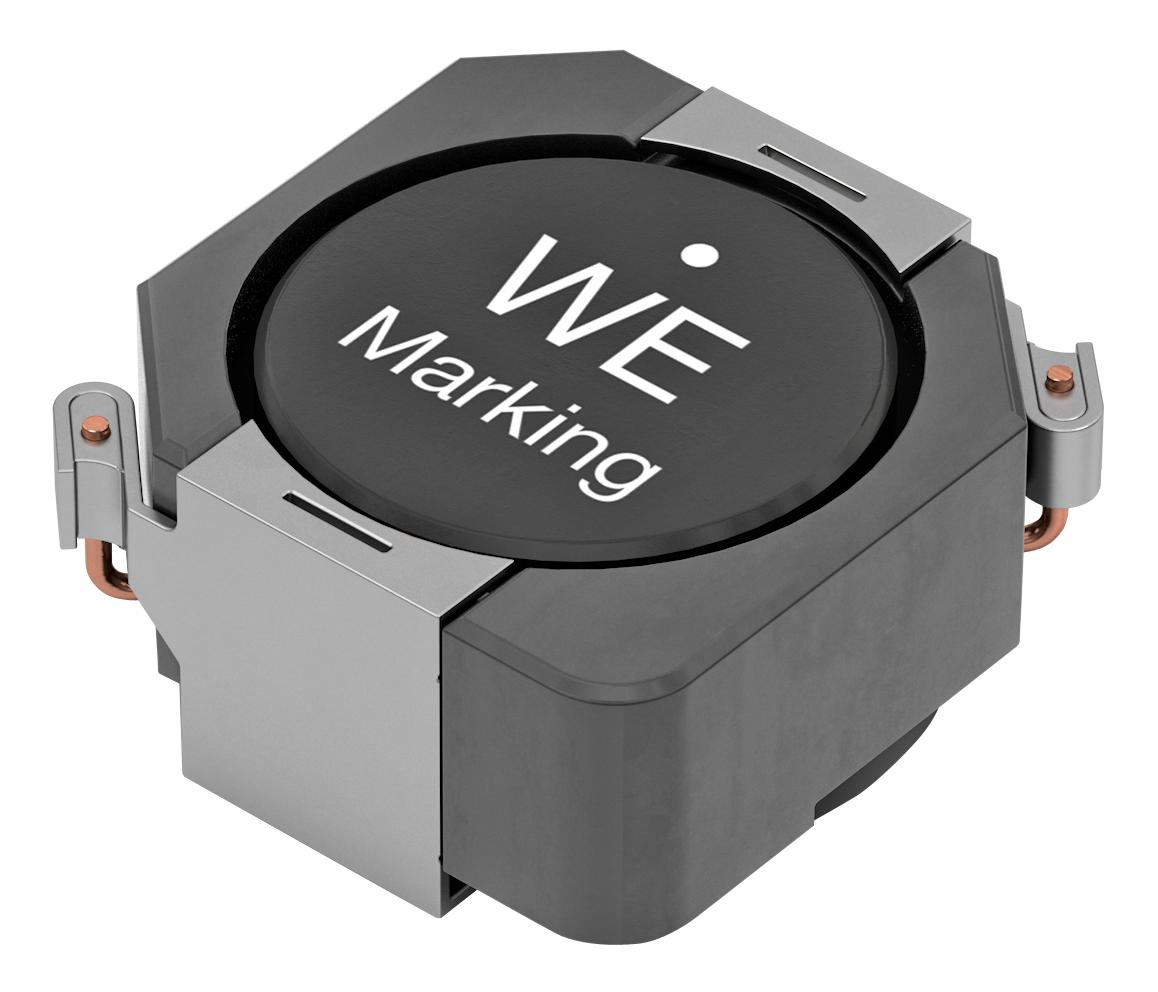

WURTH ELEKTRONIK 7447773681 Power Inductor
The shielded power inductor is designed for high-performance electronic applications, offering excellent inductance and impedance characteristics up to 23 MHz. It features RoHS and REACh compliance, with a maximum operating voltage of 120 V and operating temperature range from -40°C to +150°C. Suitable for high-frequency circuits, it is marked with inductance code 681 and is recommended for use where stable inductance, low resistance, and minimal noise are crucial. The component emphasizes reliable performance in technical electronic systems and adheres to precise manufacturing standards.
WURTH ELEKTRONIK 7447773681 Power Inductor Specifications:
- Inductance: 680 μH
- Rated Current: 0.36 A
- Saturation Current: 0.46 A
- DC Resistance: 1950 mΩ @ 20°C, max 2300 mΩ
- Self Resonant Frequency: 23 MHz
- Operating Voltage: 120 V
- Operating Temperature Range: -40°C to +150°C
- Ambient Temperature: 40°C up to +110°C
- Storage Conditions: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- Certification: RoHS, REACh, Halogen Free (JEDEC 709B)
Buy the Buy WURTH ELECTRONIC Shielded Power Inductor Part Number 7447773681 Online
Purchase the high-quality WURTH ELECTRONIC power inductor today for your electronic projects. This component offers stable inductance of 680 μH, low resistance of 1950 mΩ, and a maximum operating voltage of 120 V. Engineered for reliable performance in high-frequency circuits, it is RoHS compliant and suitable for demanding applications. With excellent thermal stability and moisture resistance, this inductor ensures long-term durability. Ideal for professionals seeking precision, this inductor enhances circuit stability, minimizes noise, and ensures optimal electronic system functionality. Buy online now for fast delivery and guaranteed quality.
Get WURTH ELECTRONIC 7447773681 today—built for high-frequency performance and long-lasting durability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7447773681?
You can click on the BUY or RFQ button to purchase 7447773681 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7447773681?
You can download the 7447773681 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7447773681?
WURTH ELEKTRONIK
