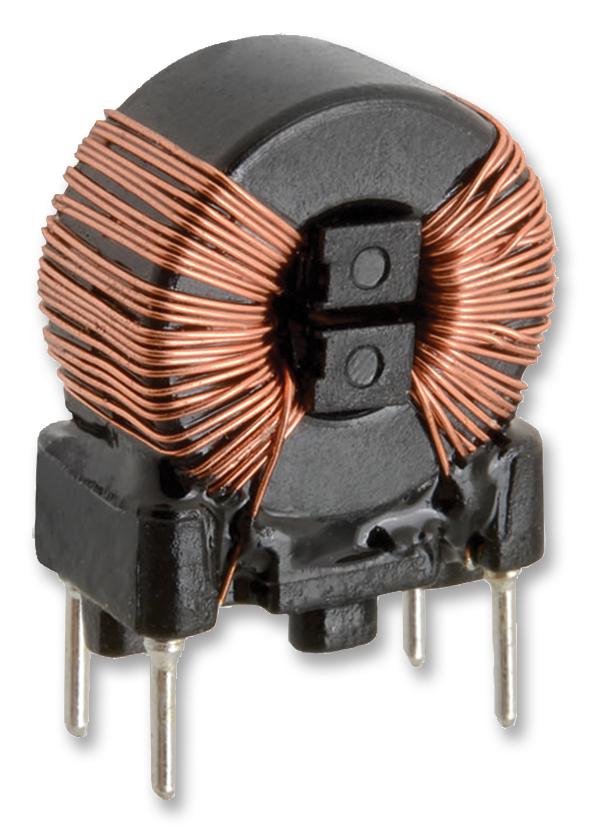

WURTH ELEKTRONIK 7448011008 Common Mode Power Line Choke
The WE-CMBNC Common Mode Power Line Choke is a compact and effective solution for reducing common-mode noise in power lines. It is designed for a wide range of applications, including power supplies, LED lighting, and renewable energy systems. The choke features low DC resistance to minimize power loss and a high insulation voltage for reliable operation. It is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death.
WURTH ELEKTRONIK 7448011008 Common Mode Power Line Choke Specifications:
- Inductance: 2x 8.0 mH
- Rated Current: 1.0 A
- DC Resistance: 2x 330 mΩ
- Rated Voltage: 250 V (AC)
- Insulation Test Voltage: 1500 V (AC)
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -20°C to 60°C
- Temperature Rise: < 55K
- Test Conditions: 20°C, 33% RH
Buy the 7448011008 WURTH ELEKTRONIK Common Mode Power Line Choke | myMectronic
Purchase the WE-CMBNC Common Mode Power Line Choke securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7448011008?
You can click on the BUY or RFQ button to purchase 7448011008 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7448011008?
You can download the 7448011008 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7448011008?
WURTH ELEKTRONIK
