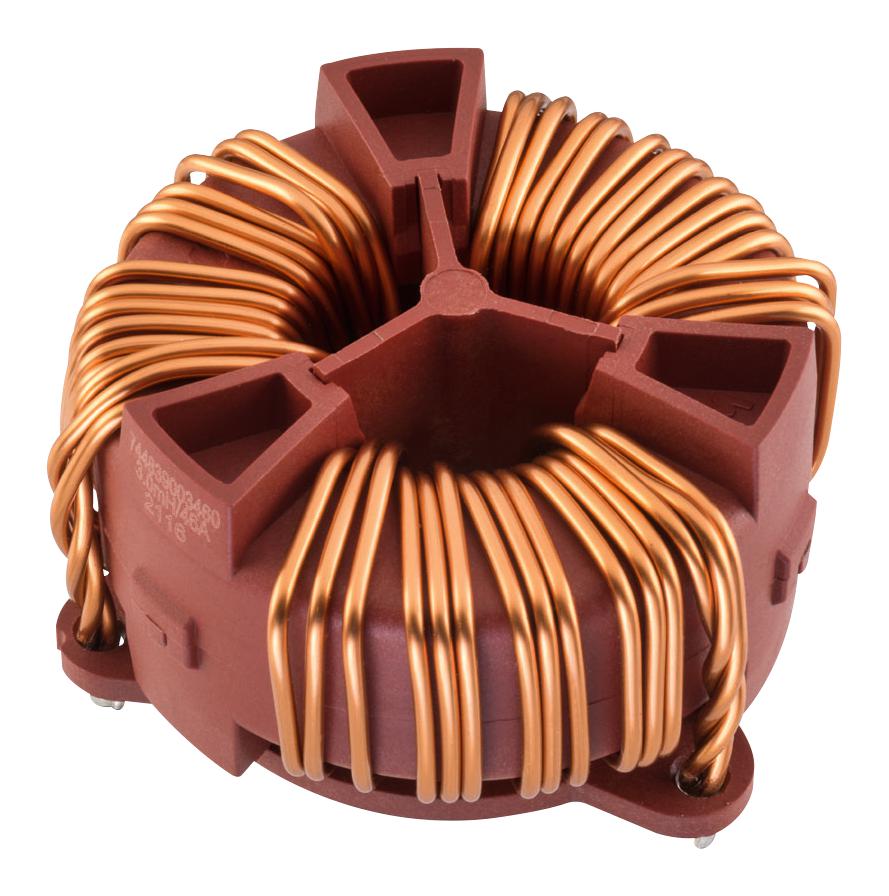

WURTH ELEKTRONIK 744837002460 Power Line Choke
The WE-TPBHV three-phase common mode power line choke is designed for electromagnetic interference filtering in industrial power systems. It features high current capacity of up to 46 A at 70°C, with a rated voltage of 760 V AC and insulation test voltage of 3000 VAC. Built for durability, it withstands temperatures up to +125°C, with a compact size for easy installation. Suitable for use in critical electrical environments, this choke ensures low inductance of 3x0.2 mH, providing effective suppression of common mode noise and ensuring compliance with relevant standards.
WURTH ELEKTRONIK 744837002460 Power Line Choke Specifications:
- Rated Current: 46 A at 70°C
- Rated Voltage: 760 V AC (50 Hz)
- Inductance: 3x0.2 mH
- Insulation Test Voltage: 3000 VAC (50 Hz, 2 sec.)
- Max Operating Temperature: +125°C
- Storage Temperature: -20°C to +60°C
- Operating Temperature: -40°C to +125°C
- Temperature Rise: < 55K
- Physical Dimensions: approximately 39.0 mm max width, 60.0 mm recommended hole spacing
- Material: Ferrite core, copper wire winding
- Soldering Profile: Max peak temperature 260°C, preheat min 100°C, typical 120°C
- Compliance: EN61760-1:2006 standards
- Mechanical: Fix with self-tapping screw; weight is significant due to heavy core
- Environment: Suitable for industrial environments, ensures electromagnetic compatibility
- Application: EMI suppression, power line noise filtering in three-phase electrical systems
Buy the Buy WURTH ELEKTRONIK Three-Phase Common Mode Power Line Choke Part Number 744837002460 Online
Secure your industrial power systems with the WURTH ELEKTRONIK WE-TPBHV three-phase common mode choke. Designed for high current up to 46 A and rated voltage of 760 V AC, it offers excellent electromagnetic interference suppression. The compact design fits easily into various enclosures, and its construction withstands temperatures up to +125°C. Whether for new installations or maintenance, buy online now to guarantee optimal EMI filtering, compliance with international standards, and dependable operation in demanding environments.
Order your WURTH ELEKTRONIK WE-TPBHV Three-Phase Common Mode Power Line Choke today and ensure reliable EMI filtering with high current capacity and robust construction.
