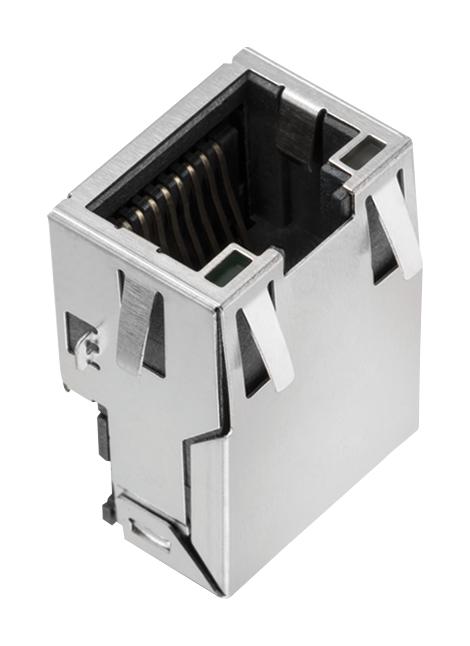

WURTH ELEKTRONIK 7498210220A LAN Transformer
The LAN Transformer WE-RJ45LAN 10/100BaseT PoE by WURTH ELEKTRONIK is a versatile, high-quality device designed for reliable data transfer in Ethernet applications. It supports 10/100Base-TX networks and PoE (Power over Ethernet) for seamless power delivery. The transformer features robust electrical properties, including an inductance of at least 350 μH, and is compliant with IEEE 802.3af standards. Its thermoplastic UL-94V0 housing is auto MDIX capable, ensuring ease of installation and compatibility for Ethernet equipment, with a focus on safety, durability, and high performance in networking environments.
WURTH ELEKTRONIK 7498210220A LAN Transformer Specifications:
- Base Material: Ferrite
- Operating Temperature: -40°C to +85°C
- Wire: 100% tin-plated copper
- Housing Material: Thermoplastic UL-94V0
- Shield Thickness: Over 0.01 inch copper alloy
- Inductance: Minimum 350 μH at 400kHz / 100mV @ 8mA
- Turns Ratio: 1:1 with ±3% tolerance
- Insert Loss: -1.0 dB max from 1-100MHz
- Return Loss: ≥16 dB from 5-45MHz
- Crosstalk: -30 dB min at 1-100MHz
- Rejection: ≥35 dB at 1-100MHz
- Hipot Test: 1500 Vrms for 1 min
- Connector Plating: Gold on contacts, Nickel shield
- Compliance: IEEE 802.3af for PoE
- LED Indicator: 2.2V / 20mA for status
- Packaging: Tray with 42 pcs, 18 trays per carton
Buy the WURTH ELEKTRONIK Series LAN Transformer: 7498210220A
Secure your networking setup by purchasing the WURTH ELEKTRONIK LAN Transformer supporting 10/100BaseT and PoE today. Designed for reliable data transfer, this device meets IEEE 802.3af standards and features robust inductance, efficient insulation, and comprehensive safety certifications. Its durable thermoplastic housing with UL-94V0 rating offers easy installation and compatibility with auto MDIX capabilities. Perfect for industrial, commercial, and advanced networking environments, this transformer ensures seamless communication and power delivery for all your Ethernet needs. Buy now for dependable performance and high-quality construction.
Order your WURTH ELEKTRONIK LAN Transformer 7498210220A today and ensure your Ethernet connections are reliable, compliant, and easy to install for professional networking projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 7498210220A?
You can click on the BUY or RFQ button to purchase 7498210220A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 7498210220A?
You can download the 7498210220A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 7498210220A?
WURTH ELEKTRONIK
