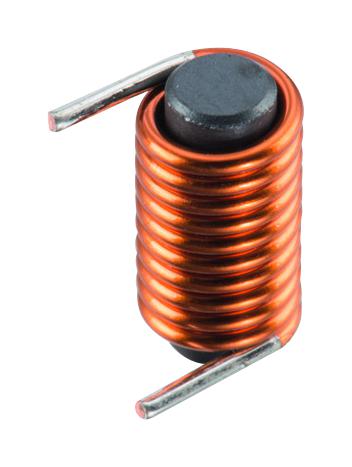

WURTH ELEKTRONIK 7847131020 Rod Core Inductor
The WE-RCIT Rod Core Inductor THT is a high-performance, RoHS and REACH compliant inductor designed for demanding electronic applications. It features a 0.25 W100 kHz inductance, a maximum rated current of 15 A, and a saturation current of 34 A, ensuring reliable operation under high power conditions. The component maintains a DC resistance of 17 mΩ at 20°C and operates within a temperature range of -40°C to +150°C. Suitable for wave soldering and various assembly profiles, it provides excellent magnetic properties and thermal stability for industrial electronics, automotive, and communication equipment demanding robust inductors.
WURTH ELEKTRONIK 7847131020 Rod Core Inductor Specifications:
- Inductance: 0.25 W100 kHz 2 WH
- Rated Current: 15 A at 40K
- Saturation Current: 34 A
- DC Resistance: 17 mΩ at 20°C
- Self Resonant Frequency: 17 MHz
- Operating Temperature Range: -40°C to +150°C
- Storage Conditions: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Certification: RoHS and REACH compliant
- Suitable for wave soldering (Pb-Free and Sn-Pb profiles)
- Dimensions and physical properties conform to industry standards
- Application areas include industrial electronics, automotive systems, and communication devices
Buy the Buy WURTH ELEKTRONIK Rod Core Inductor THT Part Number 7847131020 Online
Purchase the high-quality WURTH ELEKTRONIK Series7847131020 rod core inductor online today. Designed for demanding applications, this inductor delivers high current capacity up to 15 A, with a saturation current of 34 A, ensuring reliable performance in industrial, automotive, and communication equipment. Its RoHS and REACH compliance, combined with excellent thermal stability, makes it an ideal choice for wave soldering and various assembly profiles. Secure this durable, industry-standard inductor now for your next project to guarantee excellent electromagnetic performance and safety standards.
Order your WURTH ELEKTRONIK Series7847131020 high-current rod core inductor today and ensure your electronic projects perform reliably with premium quality components.
