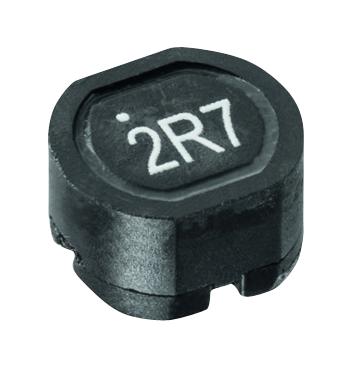

WURTH ELEKTRONIK 784787180 Power Inductor
The WE-PD2SA SMT power inductor by Wurth Elektronik is designed for high efficiency in power management applications. It features a compact form factor, low DCR, and high self-resonant frequency, making it suitable for dense PCB layouts. Certified RoHS, REACH compliant, and halogen-free, this inductor handles ambient temperatures from -50°C to +110°C and operates reliably up to +150°C. It offers excellent thermal stability and high current capacity, ideal for ensuring stability and efficiency in various high-performance electronic circuits and power supplies.
WURTH ELEKTRONIK 784787180 Power Inductor Specifications:
- Inductance: 18 µH at 100 kHz/250 mV, ±25% tolerance
- Rated Current: 2.15 A maximum
- Saturation Current: 1.9 A typical
- DC Resistance: 67 mΩ typical, 78 mΩ maximum at 20°C
- Self Resonant Frequency: 15 MHz typical
- Ambient Temperature Range: -50°C to +110°C
- Operating Temperature: -50°C to +150°C
- Storage Conditions: < 40°C, < 75% RH
- Moisture Sensitivity Level: 1
- Certifications: RoHS, REACH, Halogen Free (JEDEC JS709B, IEC 61249-2-21)
Buy the Buy Wurth Elektronik SMT Power Inductor Part Number 784787180 Online
Purchase the Wurth Elektronik WE-PD2SA SMT Power Inductor online now to ensure your electronic designs benefit from high efficiency, low resistance, and reliable performance. This compact inductor supports high currents up to 2.15 A, withstands operating temperatures up to +150°C, and complies with RoHS and REACH standards. Ideal for dense PCB layouts and power filtering applications, it guarantees stability and durability. Ready for quick shipping, order today and enhance your electronic systems with a trusted component for demanding power management needs.
Order your Wurth Elektronik WE-PD2SA SMT Power Inductor today and enjoy reliable high-current support for your electronic projects.
