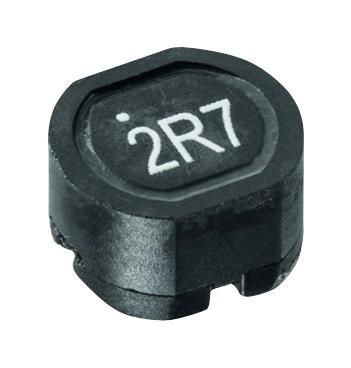

WURTH ELEKTRONIK 784787680 SMT Power Inductor
The WE-PD2SA is a high-performance SMT power inductor designed for efficient power management in compact electronic devices. It features a compact form factor with a recommended land pattern, low DCR, a rated current of 1.12 A, and an inductance of 68 µH at 100 kHz/250 mV. Certified RoHS, REACH, and halogen-free, it operates reliably at temperatures up to +150°C, making it ideal for applications requiring high thermal stability and minimal electromagnetic interference in power supply circuits.
WURTH ELEKTRONIK 784787680 SMT Power Inductor Specifications:
- Inductance: 68 µH at 100 kHz/250 mV
- Rated Current: 1.12 A max.
- Saturation Current: 1 A typ.
- DC Resistance: 246 mΩ @ 20°C (typ.), 290 mΩ (max.)
- Self Resonant Frequency: 75 MHz typ.
- Operating Temperature Range: -50°C to +150°C
- Ambient Temperature Range: -50°C to +110°C
- Storage Temperature: < 40°C; < 75% RH
- Moisture Sensitivity Level: 1
- RoHS, REACH, Halogen Free compliant
- Recommended Land Pattern: 7.8 +0.3 mm
- Package Volume: <350 mm³ for temperature profile considerations
- Lead Material: Copper alloy, RoHS compliant
- Customary soldering profile per IPC/JEDEC J-STD-020E
Buy the Wurth Series SMT Power Inductor: 68 µH 784787680
Experience high efficiency and thermal stability with the SMT Power Inductor. Designed for compact electronic applications, it features low DCR, high self-resonant frequency, and robust construction certified RoHS, REACH, and halogen-free. Its operational range from -50°C to +150°C makes it ideal for demanding power supply circuits in modern electronics, ensuring long-lasting performance. Purchase online today for dependable power management components backed by trusted quality standards and optimal design for high-reliability applications.
Get Wurth SMT Power Inductor 784787680 today—built for efficient power management and reliable high-temperature operation.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 784787680?
You can click on the BUY or RFQ button to purchase 784787680 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 784787680?
You can download the 784787680 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 784787680?
WURTH ELEKTRONIK
