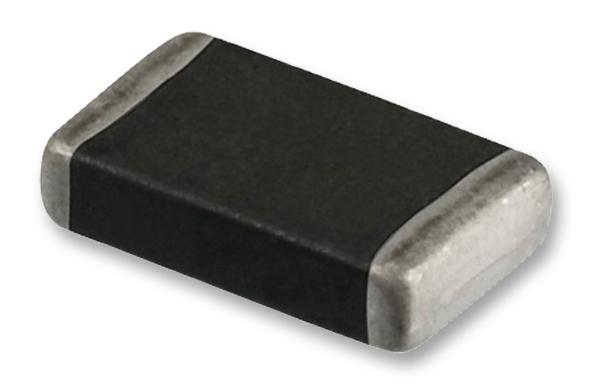

WURTH ELEKTRONIK 8231626A ESD Suppressor
The ESD suppressor WE-VE femtoF from Wurth Elektronik is a miniature, high-performance device designed to protect electronic circuits from electrostatic discharge. With a size of 0603, it features a capacitance of approximately 0.05 pF at 4 MHz, with max capacitance of 0.15 pF. Operating at up to 26V DC, it withstands ESD voltage up to 8kV contact. It is built with ceramic for durability and has detailed soldering specifications, making it ideal for sensitive electronic applications requiring reliable ESD protection.
WURTH ELEKTRONIK 8231626A ESD Suppressor Specifications:
- Size: 0603
- Dimensions: A 1.6 +0.2 mm, B 0.8 +0.2 mm, C 0.9 max mm, D 0.3 +0.2 mm, E 4.00 +0.10 mm, F 2.00 +0.10 mm, G 1.75 +0.10 mm, H 3.50 +0.05 mm, J 1.88 typ mm, Reel dimensions: a 178.0 + 2.0 mm, b 13.0 + 0.8 mm, c 7.9 min mm, d 14.4 max mm, e 1.5 min mm
- Electrical Properties: DC operating voltage Voc 26 V max, Capacitance 0.05 pF typ, 0.15 pF max at 4 MHz, Leakage current 12 VDC max 0.05 pA, Trigger voltage Vir 300 V typ, Clamping voltage 8kV at 30ns, ESD withstand 8kV contact
- Material & approvals: Ceramic, temperature range -20°C to +60°C storage, -40°C to +85°C operating, RoHS compliant
- Soldering: Suitable for Taping and reel packaging with specified dimensions
Buy the Wurth Elektronik Series ESD Suppressor: 8231626A
Secure your electronic devices with the Wurth Elektronik ESD Suppressor designed for precise electrostatic discharge protection. Its compact 0603 size fits easily into sensitive circuits, providing ratings up to 26V DC and withstanding ESD up to 8kV contact. Crafted with durable ceramic material, it ensures long-term reliability. Ideal for applications in high-safety environments, this device helps prevent damages caused by static discharge, ensuring circuit integrity, safety, and compliance with RoHS standards. Purchase online today to enhance your electronic equipment’s safety and performance.
Buy Wurth Elektronik 8231626A now and experience unmatched reliability and performance in ESD protection for sensitive electronic circuits.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 8231626A?
You can click on the BUY or RFQ button to purchase 8231626A from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 8231626A?
You can download the 8231626A datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 8231626A?
WURTH ELEKTRONIK
