WURTH ELEKTRONIK 82350120560 ESD Suppressor
The 0805 ESD Suppressor is a surface-mount device designed to protect electronics from electrostatic discharge. RoHS compliant, it features a compact 0805 size (2.0 mm x 1.25 mm), with excellent ESD withstand capabilities up to ±15 kV for air discharge and ±6 kV for contact discharge, making it suitable for various electronic protection applications. The device exhibits rapid response times less than 1 ns, a maximum operating temperature of +85°C, and low leakage current, ensuring reliable and efficient ESD suppression in high-speed circuits. It is commonly used in portable and consumer electronics for enhanced circuit reliability.
WURTH ELEKTRONIK 82350120560 ESD Suppressor Specifications:
- Size: 0805 (2.0 mm x 1.25 mm)
- Clamping Voltage: 12 V at 1 A pulse current
- Peak ESD Discharge: 15 kV (air), 6 kV (contact)
- Capacitance: 56 pF
- Response Time: < 1 ns
- Operating Voltage: Max. 115 V DC
- Leakage Current: Low at max operating voltage
- Temperature Range: -40°C to +85°C
- Body Material: ZnO
- End Termination: Ag/Ni/Sn plating
- Soldering Temperature: Max 260°C for 10s
- Storage Temperature: -50°C to +125°C
- Reel Packaging: 1500 pcs per reel
- Compliance: RoHS, IEC61000-4-2 standard
- Recommended Solder Paste: Sn 96.5 / Ag 3.5
- Soldering Profile: Preheat at 175°C for 120s, peak at 260°C, ramp down at 6°C/sec.

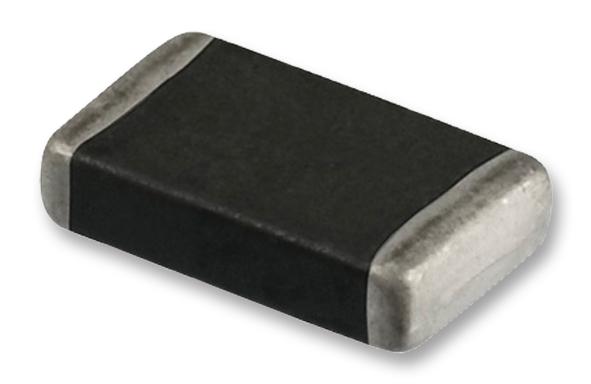

Buy the Buy WESURGE ESD Suppressor Part Number 823 50 120 560 Online
Order the WESURGE ESD Suppressor in size 0805 today. Designed for high-speed protection against electrostatic discharge, it features rapid response time, high clamp voltage, and reliable performance. Ideal for safeguarding sensitive electronic circuits in portable, consumer, and industrial devices, ensuring enhanced durability and safety. Easy to solder with recommended profiles, it offers excellent ESD withstand capabilities, low leakage, and compliance with IEC61000-4-2 standards. Secure your electronics with this reliable, compact, and RoHS-compliant suppression device available now for quick online purchase.
Get WESURGE 823 50 120 560 today—built for rapid ESD suppression and long-lasting device protection in your electronics.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 82350120560?
You can click on the BUY or RFQ button to purchase 82350120560 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 82350120560?
You can download the 82350120560 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 82350120560?
WURTH ELEKTRONIK
