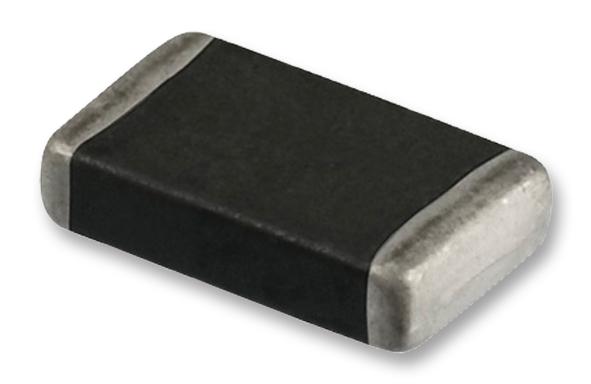

WURTH ELEKTRONIK 82357240010 ESD Suppressor
0402 ESD suppressor designed for protection against electrostatic discharge in electronic circuits, ROHS compliant, SMD size: 0402. It offers reliable ESD pulse withstand voltage of up to 8kV contact and 15kV air discharge, with low leakage current and excellent performance in static discharge mitigation. Suitable for compact PCB assemblies, this suppressor features a quick response time of less than 1 nanosecond, with a body made of ZnO terminates with Ag/Ni/Sn for durable soldering. Ideal for high-reliability environments and sensitive electronic components, ensuring effective static protection.
WURTH ELEKTRONIK 82357240010 ESD Suppressor Specifications:
- Size: 0402 (mm): 1.0 x 0.6 x 0.25
- ESD Withstand Voltage: 8kV contact, 15kV air discharge
- Clamping Voltage: 115V at 1 A pulse
- Leakage Current: Max. at 200V DC
- Capacitance: 1.0pF, tolerance +50/-20%
- Response Time: < 1 ns
- Ambient Temperature Range: -40°C to +85°C
- Storage Temperature: -50°C to +125°C
- Max. Soldering Temperature: 260°C for 10 sec
- Body Material: ZnO
- Terminations: Ag/Ni/Sn
- Package: Reel for automated placement
- Compliance: IEC 61000-4-2 standard
- Reflow Profile: Based on J-STD-020-C
- Solder Paste: Sn 96.5 / Ag 3.5
- Soldering Process: Preheating 175°C for 120 sec, peak at 260°C for 3-10 sec, cooling ramp 6°C/sec
- Packaging: Tape and reel, quantity 10,000 units per reel
Buy the Electrocomponents 823 57 240 010 – Reliable ESD Suppressor for Industrial Applications
Secure your electronic assemblies with the reliable 0402 ESD suppressor, designed for maximum static discharge protection. With high ESD withstand voltage, fast response time, and RoHS compliance, this surface-mount device is ideal for sensitive components. Its compact size fits well into tight PCB layouts, making it perfect for high-reliability applications. Easily sourced online, this suppressor ensures your products meet safety standards and enhance circuit resilience. Enhance your static discharge protection today with quick, safe online purchasing options.
Order your Electrocomponents series 823 57 240 010 ESD suppressor today and ensure your electronic circuits are protected against static discharge with dependable quality.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 82357240010?
You can click on the BUY or RFQ button to purchase 82357240010 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 82357240010?
You can download the 82357240010 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 82357240010?
WURTH ELEKTRONIK
