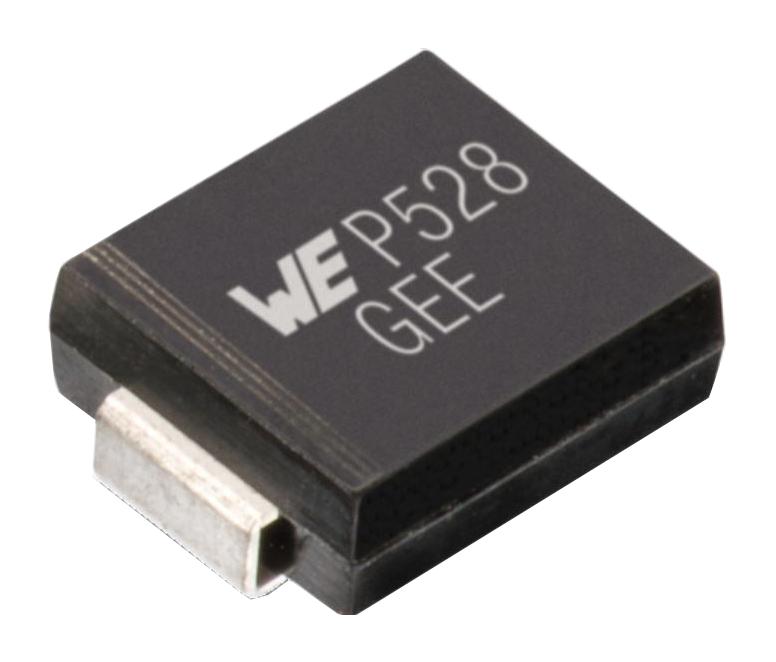

WURTH ELEKTRONIK 824540402 Power TVS Diode
The WE-TVSP Power TVS Diode is a unidirectional transient voltage suppression device designed for high-voltage clamping applications. Capable of withstanding DC operating voltages up to 400V and peak pulse currents of 200A, it offers excellent protection against voltage spikes in electronic circuits. Made with RoHS-compliant halogen-free plastics, this diode features UL and IEC certifications, with a flammability rating of UL94V-0. Its compact design, mounted on copper pads, ensures reliable performance in industrial, automotive, and telecommunications systems, providing essential surge protection and durability under demanding conditions.
WURTH ELEKTRONIK 824540402 Power TVS Diode Specifications:
- Maximum DC Operating Voltage: 400 V
- Breakdown Voltage (1 mA): 4705 V
- Peak Pulse Current (10/1000 us): 200 A
- Clamping Voltage: 648 V
- Maximum Peak Pulse Power: 100 kW
- Power Dissipation: 65 W (steady state at 50°C), 7500 W (pulse)
- Operating Temperature Range: -65°C to +150°C
- Mounting: on 5.0 mm x 5.0 mm copper pads
- Certifications: UL (UL497B, UL 1449), RoHS, IEC 61249-2-21, REACH
- Housing: Plastic with UL94V-0 flammability rating
- Moisture Sensitivity Level: Level 1
- Storage Conditions: Store below 40°C and 75% RH, use within 12 months
Buy the Wurth Series TVS Power Diode: 400V Clamping Surge Protection Device
Purchase the Wurth Series Power TVS Diode online today for robust surge protection in your electronic systems. Designed for high-voltage clamping, it supports up to 400 volts DC and peak pulse currents of 200A, making it ideal for industrial, automotive, and telecom applications. Its RoHS compliance, UL and IEC certifications, and reliable performance under extreme conditions ensure safety and durability. Order now to secure superior transient voltage suppression, safeguard your circuits, and benefit from quick delivery and expert support.
Buy Wurth Series TVS Power Diode now and experience unmatched reliability and high-voltage surge protection for industrial and automotive electronics.
