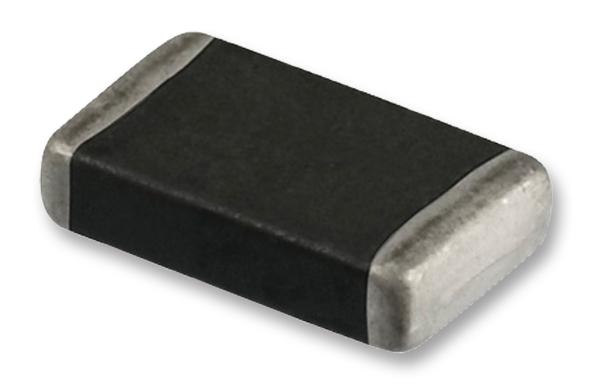

WURTH ELEKTRONIK 82541350 Surge Protector
The high surge SMD varistor from Wurth Elektronik is designed for protecting electronic circuits from voltage spikes and transients. Made of ZnO with silver/nickel/tin termination, it withstands surge currents up to 200A and dissipates energy up to 0.8J, ensuring reliable performance in industrial applications. Its compact size is 1206, with dimensions such as length 40.2mm, width 1.6mm, and thickness 1.5mm maximum. Suitable for use in electronic devices requiring high surge suppression, the varistor operates effectively within -40°C to 85°C and features low capacitance of 400pF at 1kHz.
WURTH ELEKTRONIK 82541350 Surge Protector Specifications:
- Size: 1206
- Dimensions: Length 40.2 mm, Width 1.6 mm, Max Thickness 1.5 mm
- Surge Current: 200 A max at 8/20us
- Energy Dissipation: 0.8 J max at 10/1000ps
- Varistor Voltage: 56 V at 1mA with ±10% tolerance
- Clamping Voltage: 90 V at 1A 8/20us
- Capacitance: 400 pF at 1kHz
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -20°C to 60°C
- Material: ZnO with silver/nickel/tin termination
- Response Time: Very fast, suitable for transient suppression
- Max. Power Dissipation: 0.008 W
- Certification: RoHS compliant
- Mounting Type: Surface-mount device (SMD)
- Application: Circuit protection from voltage surges across industries
Buy the Wurth Elektronik 82541350 – Reliable Surges for Industrial Applications
Purchase the Wurth Elektronik surge varistor online today to ensure robust circuit protection in your electronic devices. Designed for fast response, high surge current capacity, and reliable energy absorption, this compact SMD component safeguards your electronics from voltage transients. Suitable for industrial, automotive, and communication applications, it offers excellent electrical performance within a wide temperature range. Easy to install with standard surface-mount technology, it's the trusted choice for engineers seeking dependable surge suppression and enhanced device longevity.
Get Wurth Elektronik 82541350 today—built for precision, high surge handling, and long-lasting durability in electronic protection.
