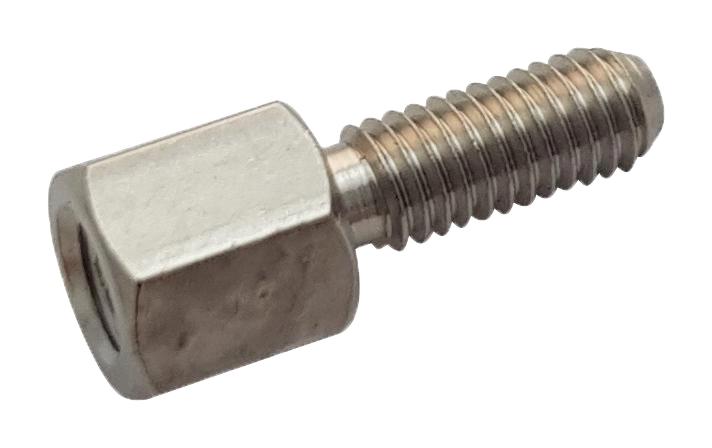

WURTH ELEKTRONIK 971050154 Brass Spacer Stud
The Würth Elektronik 971050154 is a brass spacer stud designed for secure component mounting in electronic assemblies. Constructed from brass and finished with nickel plating, this spacer offers excellent corrosion resistance and mechanical strength. It is RoHS compliant, ensuring environmental responsibility. This component is ideal for applications requiring precise spacing and secure fastening of electronic components, contributing to the overall reliability and performance of the assembly. It is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death.
WURTH ELEKTRONIK 971050154 Brass Spacer Stud Specifications:
- Dimensions_SW: mm
- Dimensions_A: mm
- Material: Brass
- Surface: Nickel (Ni)
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free_IEC: Conform [IEC 61249-2-21]
- Halogen Free_JEDEC: Conform [JEDEC JS709B]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level MSL: 1
- Length_L: 5 mm
- Inner Thread: M2.5
- Outer Thread: M2.5
- Inner Thread Length_Tli: 3 mm
- Outer Thread Length_Tlo: 6 mm
- Wrench_SW: 5 mm
- Description: WA-SBRIE Brass Spacer Stud
- Thread Type: with Metric Thread, internal/external
- General Tolerance: DIN ISO 2768-1m
- Order Code: 971050154
Buy the 971050154 WURTH ELEKTRONIK Brass Spacer Stud | myMectronic
Purchase the Würth Elektronik 971050154 brass spacer stud securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 971050154?
You can click on the BUY or RFQ button to purchase 971050154 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 971050154?
You can download the 971050154 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 971050154?
WURTH ELEKTRONIK
