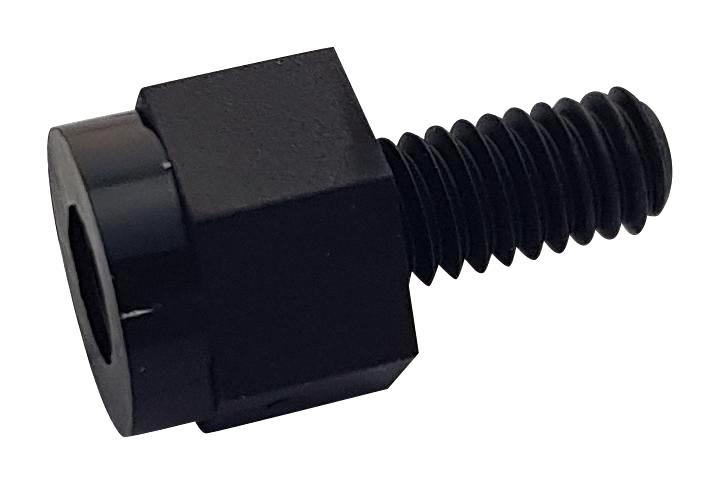

WURTH ELEKTRONIK 971060365 Plastic Spacer Stud
The WURTH ELEKTRONIK 971060365 is a plastic spacer stud designed to provide secure spacing and insulation between components in electronic assemblies. Constructed from durable black polyamide, this spacer features both internal and external M3 threads, facilitating easy integration into various PCB designs. It is RoHS compliant, indicating adherence to environmental standards, and suitable for a wide range of general electronic equipment applications. Care should be taken to adhere to specified torque limits and storage conditions to ensure optimal performance and longevity. This component is not intended for use in safety-critical applications without prior written approval from Würth Elektronik.
WURTH ELEKTRONIK 971060365 Plastic Spacer Stud Specifications:
- Dimensions_A: N/A
- SW: 6
- Lu0_1: N/A
- Tlo: 8
- Ti: M3
- To: M3
- Tli: 4
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -30 up to +110 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L: 6
- Inner_Thread: M3
- Outer_Thread: M3
- Inner_Thread_Length: 4
- Outer_Thread_Length: 8
- Description: WA-SPAIE Plastic Spacer Stud
- Thread_Type: with Metric Thread, internal/external
