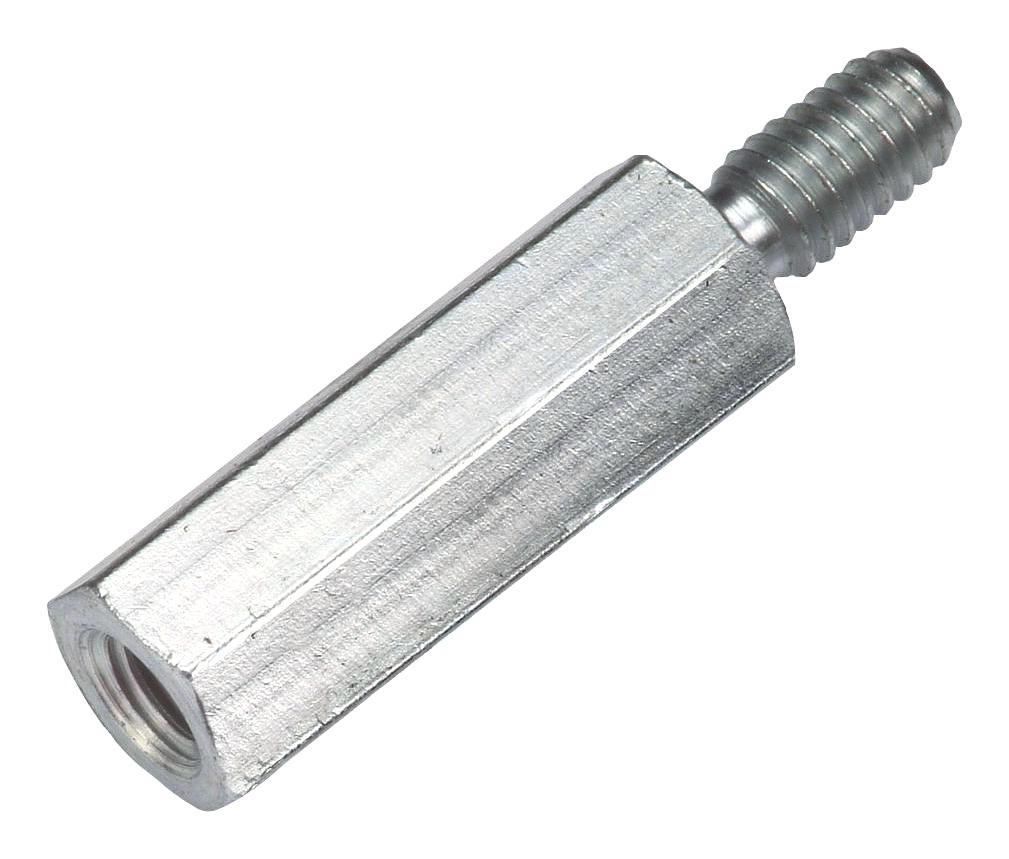

WURTH ELEKTRONIK 971090321 Steel Spacer Stud
The Würth Elektronik WA-SSTIE series steel spacer stud, part number 971090321, provides a robust and reliable fastening solution for a wide range of electronic applications. Constructed from steel with a gloss zinc finish, this spacer stud offers excellent corrosion resistance and mechanical strength. It features M3 internal and external threads, facilitating secure mounting and spacing of components. Compliant with both RoHS and REACH regulations, this spacer stud is suitable for use in environmentally conscious designs. Care should be taken to adhere to specified torque limits to prevent damage to the component and PCB. This product is not intended for use in safety-critical applications without prior written approval from Würth Elektronik.
WURTH ELEKTRONIK 971090321 Steel Spacer Stud Specifications:
- Dimensions: A: Not specified
- Material: Steel
- Surface: Gloss zinc
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] and [JEDEC JS709B]
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Length: 9 mm
- Inner Thread: M3
- Outer Thread: M3
- Inner Thread Length: 5 mm
- Outer Thread Length: 6 mm
- Wrench: 5.5
- Thread Type: Metric
- General Tolerance: DIN ISO 2768-1m
