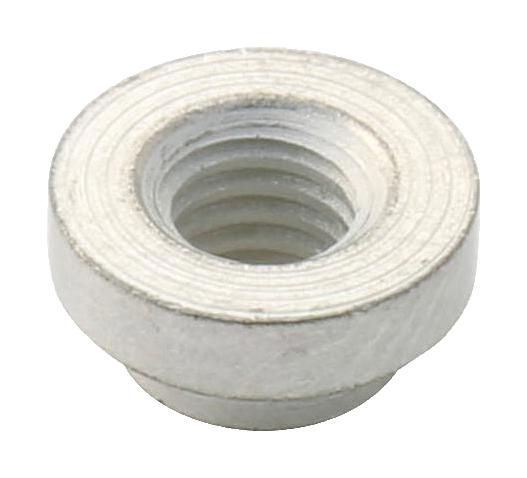

WURTH ELEKTRONIK 9774015360R SMT Steel Spacer
The Würth Elektronik 9774015360R is a precision-engineered SMT steel spacer designed for use in a wide range of electronic applications. Constructed from steel with a tin surface finish, this spacer provides robust mechanical support and electrical isolation. It is specifically designed for surface mount technology (SMT) processes, facilitating automated assembly and ensuring reliable connections. The component is RoHS compliant, reflecting Würth Elektronik's commitment to environmental responsibility. It is intended for general electronic equipment and not for applications requiring high safety or reliability standards without specific agreements.
WURTH ELEKTRONIK 9774015360R SMT Steel Spacer Specifications:
- Material: Steel
- Surface: Tin
- Suggested Solder Paste Thickness: 150 µm min.
- Tightening Torque: 0.5 N*m max.
- Operating Temperature: -55 up to +150 °C
- Storage Conditions: Below 40 °C; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Length: 1.5 mm
- Tolerance (Length): ±0.1mm
- RoHS Approval: Compliant [2011/65/EU & 2015/863]
- REACH Approval: Conform [(EC)1907/2006]
- Halogen Free: Conform [IEC 61249-2-21] & [JEDEC JS709B]
- Package Body Temperature (PB-Free Assembly): ≤ 260 °C (for thickness < 1.6 mm)
- Peak Package Body Temperature: ≤ 260 °C
- Time within 5°C of Peak Temperature: 20 - 30 seconds
- Ramp-up Rate: 3 °C/second max.
- Ramp-down Rate: 6 °C/second max.
- Time 25°C to Peak Temperature: 8 minutes max.
- Pull-off Force: 0.1 N - 1.3 N
- Tape Width: 24 mm
- Angle: 165° - 180°
