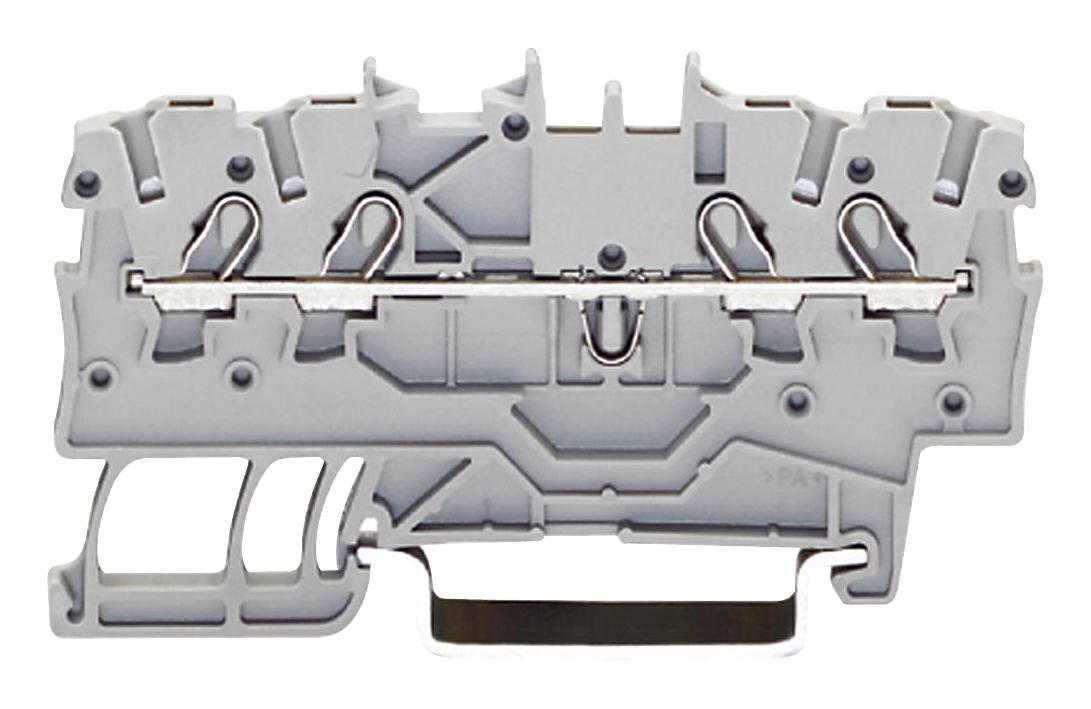

WAGO 20001401 4-conductor through terminal block
The WAGO 2000-1401 is a robust 4-conductor through terminal block specifically designed for use in Ex e II environments. It utilizes WAGO’s innovative push-in CAGE CLAMP® connection technology, ensuring secure and reliable connections for a variety of wire gauges. With a rated voltage of 800V and a nominal current of 13.5A, this terminal block is suitable for demanding industrial applications requiring both safety and performance. Its compact design allows for efficient space utilization on DIN rails, making it ideal for control cabinets and distribution panels.
WAGO 20001401 4-conductor through terminal block Specifications:
- Supplier: WAGO
- Item no.: 2000-1401
- GTIN / EAN: 4045454966928
- Content: 1
- Order amount: 100
- Total number of connection points: 4
- Total number of potentials: 1
- Color: gray
- Ratings according to 1: IEC/EN 60947-7-1
- Pollution degree (1): 3
- Rated voltage EN (1) [V]: 800
- Rated surge voltage (1) [kV]: 8
- Nominal current [A]: 13.5
- Nominal current (2) [A]: 18
- Rated voltage EN (Ex e II) [V]: 550
- Nominal current (Ex e II) [A]: 13
- Nominal current (Ex e II) with jumper [A]: 12
- Connection technology (1): Push-in CAGE CLAMP®
- Nominal cross section 1: 1 mm²
- Solid sizes 1: 0.14 … 1.5 mm² / 24 … 16 AWG
- solid, directly pluggable 1: 0.5 … 1.5 mm² / 20 … 16 AWG
- Fine-stranded wires 1: 0.14 … 1.5 mm² / 24 … 16 AWG
- min. fine-stranded with insulated ferrule, push-in terminati: 0.5 mm² / 20 AWG
- Strip length 1: 9 … 11 mm / 0.35 … 0.43 in
- Type of wiring: Front-entry wiring
- Design: horizontal
- Marking level: Center/Side marking
- Insulating material: Polyamide 66 (PA 66)
- Fire load [MJ]: 0.107
- Weight [g]: 5.14
- Width: 3.5 mm / 0.138 in
- Height from upper-edge of DIN-rail [mm]: 32.9
- Height from upper-edge of DIN-rail: 32.9 mm / 1.295 in
- Length: 67.9 mm / 2.673 in
- Type of mounting: DIN 35 rail
