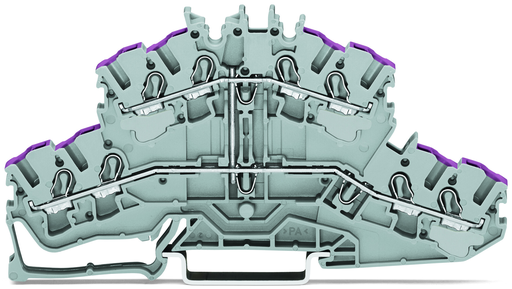

WAGO 20022408 8-conductor Terminal Block
The WAGO 2002-2408 is a robust and versatile 8-conductor double deck terminal block, ideal for use in industrial control panels and automation systems. Its double-deck design allows for increased connection density, while the Push-in CAGE CLAMP® connection ensures quick and secure terminations. The terminal block is designed for DIN-rail 35 x 15 and 35 x 7.5 mounting and supports a wide range of conductor materials and sizes, making it suitable for diverse applications. It is also rated for high voltage and current, ensuring reliable performance in demanding environments. The terminal block's gray polyamide (PA66) housing and V0 flammability rating contribute to its safety and durability.
WAGO 20022408 8-conductor Terminal Block Specifications:
- Nominal voltage (III/3): 800 V
- Rated surge voltage (III/3): 8 kV
- Rated current: 24 A
- Rated current 2: 28 A
- Ratings per IEC/EN: IEC/EN 60947-7-1
- Rated voltage UL (Use Group B): 600 V
- Rated current UL (Use Group B): 20 A
- Rated voltage UL (Use Group C): 600 V
- Rated current UL (Use Group C): 20 A
- Rated voltage CSA (Use Group B): 600 V
- Rated current CSA (Use Group B): 20 A
- Rated voltage CSA (Use Group C): 600 V
- Rated current CSA (Use Group C): 20 A
- Rated voltage CSA (Use Group D): 600 V
- Rated current CSA (Use Group D): 20 A
- Ratings per ATEX: PTB 03 ATEX 1162 U / IECEx: PTB 03.0004U (Ex eb IIC Gb)
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 21 A
- Rated current (Ex e II) with jumper: 17 A
- Note on rated current: 16 A staggered jumper
- Connection technology: Push-in CAGE CLAMP®
- Actuation type: Push-in
- Connectable conductor materials: Copper
- Nominal cross-section: 2.5 mm²
- Solid conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Solid conductor; push-in termination: 0.75 … 4 mm² / 18 … 12 AWG
- Fine-stranded conductor: 0.25 … 4 mm² / 22 … 12 AWG
- Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with ferrule; push-in termination: 1 … 2.5 mm² / 18 … 14 AWG
- Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- Strip length: 10 … 12 mm / 0.39 … 0.47 inch
- Total number of connection points: 8
- Total number of potentials: 1
- Number of levels: 2
- Wiring type: Front-entry wiring
- Width: 5.2 mm / 0.205 inch
- Height: 105.1 mm / 4.138 inch
- Depth from upper edge of DIN-rail: 52.1 mm / 2.051 inch
- Potential marking: L
- Design: horizontal type
- Mounting type: DIN-35 rail
- Marking level: Center/side marking
- Insulation material: Polyamide (PA66)
- Flammability class per UL94: V0
- Fire load: 0.294 MJ
- Weight: 16.1 g
- Product Group: 22 (TOPJOB S)
- Packaging type: BOX
- Country of origin: CN
- GTIN: 4050821145011
- Customs tariff number: 85369010000
