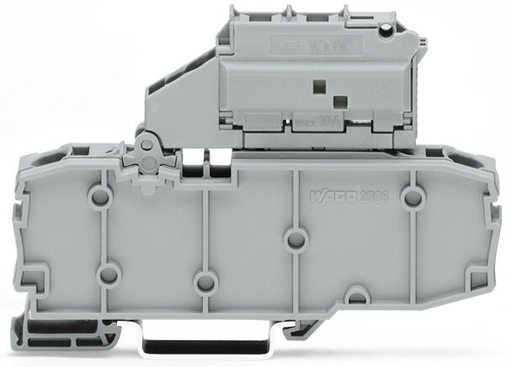

WAGO 20061631099000 2-conductor fuse terminal block
The WAGO 2006-1631/099-000 is a 2-conductor fuse terminal block designed for use in industrial control and power distribution systems. It provides a safe and reliable connection point for circuits requiring fuse protection. The block accepts standard ¼” x 1¼” glass cartridge fuses and features a pivoting fuse holder for easy replacement. The Push-in CAGE CLAMP® connection ensures secure and efficient termination of conductors. It is mounted on DIN rails (35 x 15 and 35 x 7.5) and is suitable for a variety of applications including lighting control, motor protection, and power distribution panels. Care should be taken to observe the power loss limitations when selecting fuses and mounting the terminal block, especially in high-temperature environments.
WAGO 20061631099000 2-conductor fuse terminal block Specifications:
- Base Part Number: 2006-1631/099-000
- Number of Conductors: 2
- Fuse Size: ¼" x 1¼"
- Mounting Rail: DIN-rail 35 x 15 and 35 x 7.5
- Conductor Size: 6 mm²
- Connection Type: Push-in CAGE CLAMP®
- Color: gray
- Insulation Material: Polyamide (PA66)
- Power Loss (max): 2.5 W
- Nominal Voltage (III/3): 800 V
- Rated Surge Voltage (III/3): 8 kV
- Rated Current: 10 A
- Rated Voltage UL (Use Group B): 600 V
- Rated Current UL (Use Group B): 15 A
- Rated Voltage CSA (Use Group B): 600 V
- Rated Current CSA (Use Group B): 15 A
- Solid Conductor Size: 0.5 … 10 mm² / 20 … 8 AWG
- Fine-Stranded Conductor Size: 0.5 … 10 mm² / 20 … 8 AWG
- Strip Length: 13 … 15 mm / 0.51 … 0.59 inch
- Total Number of Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Width: 10.4 mm / 0.409 inch
- Height: 96.3 mm / 3.791 inch
- Depth from Upper Edge of DIN-rail: 59 mm / 2.323 inch
- Weight: 28.8 g
- GTIN: 4045454821203
- Customs Tariff Number: 85369095000
Buy the 2006-1631/099-000 WAGO 2-conductor fuse terminal block | myMectronic
Purchase the WAGO 2006-1631/099-000 fuse terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy WAGO 20061631099000?
You can click on the BUY or RFQ button to purchase 20061631099000 from an authorized WAGO distributor.
How do I troubleshoot issues or seek technical support for part 20061631099000?
You can download the 20061631099000 datasheet or visit the WAGO website for support.
Who is the manufacturer of 20061631099000?
WAGO
