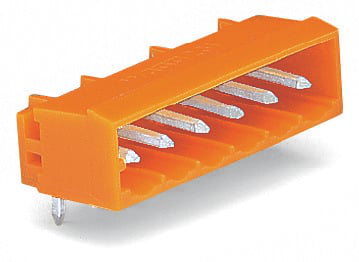

WAGO 231535001000 Right Angle Solder Pin Connector
The WAGO 231-535/001-000 is a robust right-angle solder pin connector ideal for applications requiring parallel PCB mating. With a 5.08mm pin spacing and a 5-pole configuration, this connector offers reliable connections in industrial automation, control systems, and power distribution. It is designed to withstand harsh environments and provides a secure connection for various wire gauges.
Authorized Distributors
Source:Master Electronics
Part No:231-535/001-000
Stock:47
Inv Date:06-04-2026
Price: Unit price: $2.13
Buy/RFQ:
Source:Onlinecomponents.com
Part No:231-535/001-000
Stock:47
Inv Date:06-04-2026
Price: Unit price: $2.13
Buy/RFQ:
Source:Future Electronics Corporate
Part No:231-535/001-000
Stock:0
Inv Date:06-04-2026
Price: Unit price: $1.83
Buy/RFQ:
WAGO 231535001000 Right Angle Solder Pin Connector Specifications:
- product_description: HEADER; RIGHT ANGLE SOLDER PIN, 1 X 1 MM / 0.039 X 0.039 IN; 5 POLE; PIN SPACING 5.08 MM / 0.2 IN; MATING DIRECTION PARALLEL TO PCB; WITH CLOSED END
- packing_unit: 200 (4*50 pieces)
- product_group: 3 (Multi Conn. System)
- pin_spacing: 5.08 mm / 0.2 in
- pole_count: 5
- measured_voltage_en: 250 V
- measured_shock_voltage: 4 kV
- pollution_degree: 3
- current_intensity_en: 12 A
- weight: 1.77 g
- color: orange
- height: 8.4 mm / 0.331 in
- width: 28.6 mm / 1.126 in
- depth: 12 mm / 0.472 in
- admission_office_abs: 04-HG469925-PDA
- approval_bbj: B/12/699/03
- voltage_v_abs: 400
- current_a_abs: 12
- cross_section_mm2_abs: 0,8-2,5
- approval_bv: 11915/A0
- voltage_v_bv: 400
- current_a_bv: 16
- cross_section_mm2_bv: 2,5
- approval_csa: 154112-1466354
- voltage_v_csa: 300
- current_a_csa: 10
- cross_section_mm2_csa: 1x1
- approval_demko: 88126
- voltage_v_demko: 250
- approval_gl: 17296-00HH
- voltage_v_gl: 400
- current_a_gl: 12
- approval_kr: HMB05880-EL003
- voltage_v_kr: 250/400
- current_a_kr: 12/16
- cross_section_mm2_kr: 2,5
- approval_lr: 96/20035
- voltage_v_lr: 400
- current_a_lr: 12
- approval_nemko: P94101840
- voltage_v_nemko: 250
- approval_rmr: 11130002
- voltage_v_rmr: 400
- current_a_rmr: 12
- approval_ul: E45172
- voltage_v_ul: 300
- current_a_ul: 10
- cross_section_mm2_ul: 1x1
- approval_ur: E45172
- voltage_v_ur: 300
- current_a_ur: 10
- cross_section_mm2_ur: 1x1
- approval_vde: 5675ÜGBl.2
- voltage_v_vde: 250
- current_a_vde: 12
